中文名: 哈勃-15年的发现之旅
原名: Hubble-15 Years of Discovery
资源格式: PDF
发行时间: 2005年
地区: 美国
语言: 英文
哈勃-15年的发现之旅 简介:
哈勃-15年的发现之旅 内容简介:
《哈勃-15年的发现之旅》讲述哈勃太空望远镜的基本构造以及其工作的15年中为人类太空探索做出的贡献,分别从各个太空探索领域进行解释。清晰彩图版,书中大量的宇宙图片,可以满足一双爱美的眼睛。
哈勃-15年的发现之旅 内容截图:
哈勃-15年的发现之旅
HUBBLE
15 YEARS OF DISCOVERY
BY LARS LINDBERG CHRISTENSEN BOB FOSBURY
ILLUSTRATIONS AND LAYOUT BY MARTIN KORNMESSER
This book is dedicated to all the hard working people in the USA and Europe who have made the Hubble
Space Telescope an incredible scientific successLars Lindberg Christensen ESAST-ECF
NASAESA Hubble Space Telescope
Garching 85748, Munich, Germany
lars@eso.org
Robert A. Fosbury ESAST-ECF
NASAESA Hubble Space Telescope
Garching 85748, Munich, Germany
rfosbury@eso.org
Library of Congress Control Number: 2005935456
ISBN-10: 0-387-28599-7
ISBN-13: 978-0387-28599-3
Printed on acid-free paper.
006 Springer Science+Business Media, Inc.
All rights reserved. This work may not be translated or copied in whole or in part
without the written permission of the publisher (Springer Science+Business
Media, Inc., 233 Spring Street, New York, NY 10013, USA), except for brief excerpts
in connection with reviews or scholarly analysis. Use in connection with any form
of information storage and retrieval, electronic adaptation, computer software, or
by similar or dissimilar methodology now known or hereafter developed is
forbidden.
The use in this publication of trade names, trademarks, service marks, and similar
terms, even if they are not identified as such, is not to be taken as an expression
of opinion as to whether or not they are subject to proprietary rights.
Printed in the United States of America. (EVB)
987654321
springer.com
·2HUBBLE
15 YEARS OF DISCOVERYThe Sombrero Galaxy
The Sombrero galaxy is one of the
Universe's most stately and photogenic
galaxies. The galaxy's hallmark is a
brilliant white, bulbous core encircled by
thick dust lanes comprising the spiral
structure of the galaxy.
NASAESA and The Hubble Heritage Team (STScIAURA)TABLE OF CONTENTS
FOREWORD BY MALCOLM LONGAIR 5
PREFACE 7
INTRODUCTION 9
1THE HUBBLE STORY 11
2HUBBLE UP CLOSE 21
3PLANETARY TALES 29
4THE LIVES OF STARS 39
5COSMIC COLLISIONS 59
6MONSTERS IN SPACE 71
7GRAVITATIONAL ILLUSIONS 81
8BIRTH AND DEATH OF THE UNIVERSE 89
9LOOKING TO THE END OF TIME 97
10 HUBBLE GALLERY 105The Hubble Space Telescope has undoubtedly had a greater public impact than any
other space astronomy mission ever. The images included in this beautiful volume
are quite staggering in what they reveal about the Universe we live in and have already
become part of our common scientific and cultural heritage.
But what about the science impact? It is no exaggeration to say that the scientific
output of the mission has far exceeded the most optimistic expectations of all those
involved in the planning and execution of the project.When I joined the project in 1977,I had to describe the astronomy programme I would carry out with the Hubble once it
was in operation in orbit. Seventeen years later when I receivedmy first data, I was quite
staggered by the quality of the images and also by the totally new science which they
revealed about the ways in which relativistic jets can illuminate the environments of
active galaxies. This is a repeated theme in essentially all areas explored by the
Telescope. The images are not only beautiful, but are full of spectacular new science,much of it undreamed of by the astronomers involved. A good example is the discovery
of protostellar discs seen in silhouette against the bright background of the Orion
Nebula. Another is the ability to discover distant star forming galaxies by imaging in a
number of wavebands. The observation of distant supernovae has enabled the present
acceleration of the Universe as a whole to be measured – an undoubted triumph. And
then there are the spectacular images of the Hubble Deep and Ultra-Deep Fields which
have revealed what are almost certainly young galaxies in the process of forming the
galaxies and larger scale structures we observe about us today. But these are only a few
random samples of the wealth of scientific knowledge which has accrued from the
mission. Every picture tells a wonderful story which has already been built into our
picture of the evolving Universe.
What are the lessons to be learned from this spectacular success? The route to new
understanding is through the ability to observe the Universe in new ways with tech-
niques, that extend observational capability by a factor of 10 or more. In the case of the
Hubble Space Telescope, the gains in angular resolution, or sharpness, and correspond-
ing sensitivity, as well as the remarkable stability of the instruments in the remote
environment of space, have given it unprecedented power to uncover new astrophysics.
The results are a wonderful tribute to the dedicated efforts of many scientists, astrono-
mers, engineers, managers and administrators, as well as to the vision of NASA and ESA
in enabling the Hubble Space Telescope to come about. Long may this vision and the
ability to inspire the public imagination continue as an essential means of deepening
our understanding of the Universe.
MalcolmLongair
4 April 2005
FOREWORD
5
NGC 346
Hubble's exquisite sharpness has
plucked out an underlying
population of infant stars
embedded in the nebula NGC 346
that are still forming from
gravitationally collapsing gas
clouds.
NASA, ESA and A. Nota (STScIESA)The long-term wellbeing and cultural development of humanity depend on scientific
research and technological development. The communication of scientific discoveries
and information about scientists and their work to the public are vital components of the
scientific process. However, the competition for attention in today’s mass-media market
is fierce.
This book takes a closer look at whatmay be the world’smost successful scientific project.
The fifteenth anniversary of Hubble’s launch, which took place on the 24th April 1990,presented the ideal opportunity for a spectacular project to seize the attention of the
public. The story of a journey through space and time revealed by the telescope is told in a
way that we hope will appeal especially to the younger generation. It will be their enthu-
siasmthat powers the future of the scientific endeavour.
We should like to thank Stefania Varano, Stuart Clark and Anne Rhodes who all worked on
the film manuscript that laid the foundation for important parts of this book. Unless
otherwise noted, the images in this book were taken by the NASAESA Hubble Space
Telescope and should be credited to NASA, ESA and the individual scientists (see
www.spacetelescope.org for the exact details).
Lars Lindberg Christensen and Bob Fosbury
Munich, 23 November 2005
PREFACE
The Cone Nebula
Radiation from hot, young stars
(located beyond the top of the
image) has slowly eroded the
nebula over millions of years.
Ultraviolet light heats the edges of
the dark cloud, releasing gas into
the relatively empty region of
surrounding space.
7
NASA, Holland Ford (JHU), the ACS Science Team and ESAINTRODUCTION
On 24 April 2005 the NASAESA Hubble Space Telescope will exceed its original
estimated lifetime of 15 years in orbit around the Earth. Hubble has been hugely
successful in many different areas of astronomy. How does it differ from other famous
telescopes?
Hubble orbits 600 km above the Earth's surface, placing it well above our image-
distorting atmosphere. It can be upgraded to take advantage of the latest developments
in instrumentation and software. The telescope is designed to take high-resolution
images and accurate spectra by concentrating light to form sharper images than are
possible from the ground, where the atmospheric 'twinkling' of the stars limits the
clarity. Therefore, despite its relatively modest aperture of 2.4 metres, Hubble is more
than able to compete with ground-based telescopes that have light-collecting (i.e.
mirror) areas 10 or even 20 times larger.
As well as being able to take sharper wide-field images, the other huge advantage
Hubble has over ground-based telescopes is its ability to observe the near-infrared and
ultraviolet light that is otherwise filtered away or masked by the atmosphere before it
can reach the ground.
In many areas of astronomical investigation, Hubble has pushed the limit of our knowl-
edge far, far beyond anything possible before its launch.
NGC 1300
NGC 1300 is considered to be
prototypical of barred spiral
galaxies. Barred spirals differ from
normal spiral galaxies in that the
arms of the galaxy do not spiral all
the way into the centre, but are
connected to the two ends of a
straight bar of stars containing the
nucleus at its centre.
9
NASA, ESA, and The Hubble Heritage Team (STScIAURA)THE HUBBLE STORY
Hubble finally allowed astronomers to realise their dream of
escaping the distorting effects of the Earth’s atmosphere to
make their observations. Achieving an operational observatory in space
was no small task: it took decades of planning and construction in a
project of such scale and cost that it demanded international collabora-
tion and the work of many dedicated engineers and scientists. The con-
cept of a telescope that could be upgraded and serviced regularly by
astronauts has resulted in capabilities and scientific discoveries far
beyond the expectations of the designers.
Hubble in Dock
The Hubble Space Telescope in the
Shuttle's payload bay during
Servicing Mission 3A.
11
1
NASA12
Hubble has vastly improved our view of the skies, sharpened our
perception of the Universe, and allowed us to penetrate ever deeper
toward the furthest edges of time and space.
Looking at the night sky we see the familiar twinkle of starlight; light that
has travelled enormous distances to reach us. But the stars themselves do
not flicker. The Universe is gloriously transparent, allowing light from
distant stars and galaxies to travel unchanged across space for thousands,millions, even billions of years. Then, in the last few microseconds before
the light reaches our eyes, the fine details in the view of those stars and
galaxies are snatched away. This is because, as light passes through our
atmosphere, the ever changing blankets of air, water vapour and dust, blur
the image that finally reaches us.
To solve this problem, astronomers around the world longed for an
observatory in space for many years. As early as 1923, the famed German
rocket scientist Hermann Oberth suggested a space-based telescope.
However, it was decades before technology caught up with the dream. The
American astronomer Lyman Spitzer proposed a more realistic plan for a
space telescope in 1946.
From a position in space above the Earth's atmosphere, a telescope could
detect the pristine light fromstars, galaxies, and other objects before their
images become distorted by the air we breathe. The result: much sharper
images than even the largest telescopes on the ground could achieve;
images limited in sharpness only by the quality of the optics.
In the 1970s, NASA – the National Aeronautics and Space Administration
and ESA the European Space Agency began working together to
design and build what would become the Hubble Space Telescope. The
name is a tribute to Edwin Powell Hubble, the founder of modern cosmol-
ogy, who, in the 1920s, first showed that not all we see in the sky lies
within the Milky Way. Instead, the cosmos extends far, far beyond.
Hubble's work changed our perception of mankind's place in the Universe
forever and the choice of naming th most magnificent telescope after
Edwin Hubble could not have beenmore appropriate.
–– –
is
For many years astronomers
longed for an observatory in space
ESAAbove the Ocean of Air
A ground-based telescope similar in size to Hubble
produced the image of the barred galaxy NGC 1300 on the
left. From its position in space above the Earth's
atmosphere, Hubble obtained the picture on the right of
the same galaxy. A technique called 'Adaptive Optics' can
be used to sharpen ground-based images and is extremely
effective when used with telescopes much larger than
Hubble (see box below).
Hubble vs. Adaptive Optics
The technique of Adaptive Optics can sharpen images from large ground-based telescopes to attain a
higher resolution and is being vigorously developed by astronomers around the World. Such
observations are highly complementary to those made by Hubble since they can exploit the collecting
power of much larger telescopes and can be used very effectively to feed such light-hungry
instruments as spectrographs. This higher resolution is achieved over a small patch of the sky and and
the technique works better at infrared wavelengths than it does in the visible spectrum used by
Hubble. Hubble remains supreme for mapping parts of the sky in exquisite detail in ultraviolet, visible
and near-infrared light.
Why is Hubble in orbit around the Earth?
The Earth’s atmosphere both absorbs and emits light. Beyond the blue end of the visible spectrum,the presence of ozone ensures that little ultraviolet light reaches the ground. Towards the red end and
beyond, into what astronomers call the near-infrared spectrum, there is considerable absorption by
water vapour and molecular oxygen but also, the sky is brightened by intense emission from the OH
radical (an unstable molecule consisting of an oxygen and a hydrogen atom). The visible spectrum
alone remains reasonably free from these effects. The entire spectral range from ultraviolet through
the near-infrared remains cleanly accessible to Hubble.
13
NASA, ESA, and The Hubble Heritage Team (STScIAURA)
Hillary MathisNOAOAURANSFIt took two decades of dedicated collaboration between scientists, engineers and
contractors from many countries before Hubble was finally finished. On April 24, 1990,five astronauts aboard the space shuttle Discovery left on a journey that changed our
vision of the Universe for ever! They deployed the eagerly anticipated Space Telescope in
an orbit roughly 600 kmabove the Earth’s surface.
On Earth, astronomers waited impatiently for the first results. After extensive technical
verification and testing, it soon became obvious that Hubble’s vision was anything but
sharp. The mirror had a serious flaw. A defect in the shape of the mirror prevented
Hubble from taking clear images. The mirror’s edge was too flat by only a mere fiftieth
of the width of a human hair. But to accomplish itsmission, Hubble had to be perfect in
every tiny detail. The disappointment was almost too great to bear. Not only amongst
astronomers, but also for American and European taxpayers.
Nevertheless, over the following two years, scientists and engineers fromNASA and ESA
worked together to design and build a corrective optics package, named COSTAR, for
Corrective Optics Space Telescope Axial Replacement. They were also able to build in a
perfect correction to the replacement camera that was already planned for installation.
Hubble’s masters now faced another tough decision: which science instrument should
they remove so that COSTAR could be fitted to Hubble? They eventually chose the High
Speed Photometer.
Hubble’s First Servicing Mission, performed in 1993, has gone down in history as one of
the supreme highlights of human spaceflight. It captured the attention of both astrono-
mers and the public at large to a degree that no Space Shuttle mission has since
achieved. Meticulously planned and brilliantly executed, the mission succeeded on all
counts. COSTAR and the new Wide Field and Planetary Camera 2 (WFPC2) corrected
Hubble’s eyesightmore perfectly than anyone had dared to hope.
Hubble'smirror problem
The cause of the problem was a defect in the 2.4 metre diameter primary mirror caused by the incorrect assembly of
the optical system used to test the mirror during manufacture. This resulted in what is called ‘spherical aberration’.
Fortunately, the test system remained untouched in the lab and it was possible for engineers to go back and use it to
reconstruct the nature of the error with great precision. This is why the Servicing Missions were so successful in
correcting Hubble’s optics to near-perfection.
14When the first images after the servicing came up on the computer screens it was
instantly clear that the ‘glasses’ taken up by the astronauts were completely correcting
Hubble's vision. Hubblewas finally in business!
That was only the first time the Space Shuttle visited Hubble. The telescope was
designed to be upgraded, enabling it to take advantage of new technologies and
software. When more advanced instruments, electrical or mechanical components
became available, they could be installed by the astronauts. So, just as a car needs
servicing so Hubble needs tuning-up from time to time. Engineers and scientists
periodically send the Shuttle to Hubble so that astronauts can upgrade it, using
wrenches, screwdrivers and power tools, just as amechanicmight with a car.
There have been four Servicing Missions so far: in 1993, 1997, 1999 and 2002. All were
undertaken by astronauts transported into space by NASA’s Space Shuttle. The next one
was supposed to occur in 2005, but was unfortunately cancelled in the aftermath of the
tragic Columbia crash.
Hubble’s future is uncertain. It was originally designed to operate for 15 years, but it is
now expected that its life could be extended to 20 years. Hubble is still producing the
most astonishing results that astronomers have ever known.
Changing instruments on Hubble
An astronaut exchanging cameras
on Hubble during the first Servicing
Mission in 1993.
15
Hubble was finally in business!
The centre of M100
The central regions of this grand-
design spiral galaxy taken before
and after Hubble's first servicing
mission. Left: A picture taken with
theWFPC1 camera in wide field
mode, on November 27, 1993, just
a few days prior to the STS-61
servicing mission. The effects of
optical aberration in HST's 2.4-
metre primary mirror blur starlight,smear out fine detail and limit the
telescope's ability to see faint
structure. Right: The same field
imaged withWFPC2 in its high
resolution channel. TheWFPC2
contains modified optics that
correct for Hubble's previously
blurry vision. For the first time the
telescope was able to resolve
cleanly faint structure as small as
30 light-years across in a galaxy
that is tens of millions of light years
away. The image was taken on
December 31, 1993.Fine Guidance Sensor
Astronaut Gregory J. Harbaugh
on the robot-arm manoeuvring a
Fine Guidance Sensor (FGS)
during the second Servicing
Mission.
16
NASAEventually, however, Hubble’s active life will end and the telescope will have to be guided
to a safe resting place in the ocean. It is too massive a spacecraft to burn up completely
in the atmosphere on re-entry and an uncontrolled plunge into the atmosphere is a
potential danger to residents of regions covering a broad swathe of our planet. The plan
is for an unmanned probe to link up with Hubble in orbit and dock with it. The probe will
leave behind a rocket-module so that, after some more years of fruitful observing,engineers on the ground can activate these rockets to control Hubble’s final descent into
the atmosphere.
However, the retirement of the Hubble Space Telescope will not signal the end of our
unrivalled view of the Universe. Rather, it will mark a new beginning, an era of even
more amazing discoveries and images fromspace. For Hubble has a successor.
The James Webb Space Telescope is currently being designed and may be launched as
early as 2011. When that day comes, scientists using the James Webb Space Telescope
hope to discover and understand evenmore about our fascinating Universe.
Space power tools
Astronaut Claude Nicollier, mission
specialist from the European Space
Agency (ESA), works at a storage
enclosure using one of the Hubble
power tools during the second of
three extravehicular activities (EVA)
of the third Servicing Mission.
17
Just as a car needs servicing so Hubble
needs tuning-up from time to time
NASAJamesWebb Space Telescope
Artist's impression of the JamesWebb
Space Telescope. Shaded behind a huge
sunscreen, the telescope and its
instruments will remain cool enough to
make ultra-sensitive infrared observations
of the most distant objects in the
Universe.
ESAESA21
HUBBLE UP CLOSE
The NASAESA Hubble Space
Telescope
Hubble is a large satellite; about 16
metres long or the size of a small
bus. It is also one of the most
complicated pieces of technology
ever built.
Hubble is a large satellite, about the size of a school bus. As well as
the 2.4 metre aperture telescope, it carries six scientific instru-
ments that can be regularly replacedwithmoremodern and capable ones
by space suited astronauts in orbit 600 km above the Earth. The systems
that allow it to be pointed and stabilised are very sophisticated and are
working extraordinarily well. Far from being an isolated resource for
astronomers, Hubble has worked in close harmony with other satellites
and ground-based observatories to lead, during its 15 years of operation,a huge leap in our understanding of the Universe.
222 ESA23
Hubble is a space-based telescope that is designed to be upgraded and to adapt to
changing needs and technologies. It orbits at almost 600 km above the Earth’s
surface, placing it well above most of our image-distorting atmosphere and takes about
96minutes to complete each orbit.
It is designed to take high-resolution images and accurate spectra by concentrating
starlight to form sharper images than are possible from the ground, where the atmo-
spheric ‘twinkling’of the stars limits the clarity.
To gather asmuch light as possible fromthe faint objects it studies, any telescope needs
the largest mirror it can get. Despite Hubble’s relatively modest mirror diameter of 2.4
metres, it is more than able to compete with ground-based telescopes that have mirrors
10 or 20 times larger in collecting area.
Hubble is a large satellite; about 16metres long or the size of a small bus. It is also one of
the most complicated pieces of technology ever built. It contains more than 3000
sensors that continually read out the status of the hardware so that technicians on the
ground can keep an eye on everything.
Time on Hubble is a precious commodity. Astronomers across the world regularly ask for
much more time than is available. Keeping Hubble working 247 is no small task. Not a
single secondmust be lost and all tasks either observations or so-called ‘housekeeping’
tasks, such as repositioning of the telescope, or uploading new observing schedules —
aremeticulously planned.
–
Hubble's orbit
Hubble orbits the Earth every 96
minutes at an altitude of nearly
600 km. The ever-changing aspect
of its orbit makes the process of
scheduling observations rather
complicated.
Is there competition between different observatories?
A large and ambitious astronomical research project today would use large amounts of time on a whole range of
different telescopes on the ground and in space. These telescopes, far from competing with one another, provide
different and complementary views of astronomical sources that greatly increase our ability to understand the
physical processes that create them. It is usually a case of the whole being greater than the sum of the parts.
Hubble plays an absolutely pivotal role inmany of these programmes.
Hubble is a space-based telescope

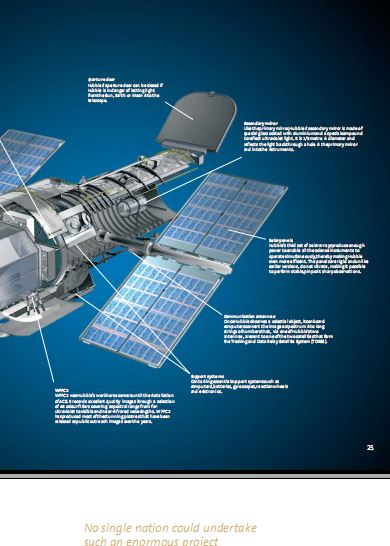

that is designed to be upgradedHubble exposed
This cutaway view of Hubble shows the
configuration of the telescope, the
instruments and the many other essential
systems that allow it to point, operate and
communicate.
24
FGS
Hubble has three Fine Guidance Sensors on board. Two of
them are needed to point and lock the telescope on the target
and the third can be used for position measurements, also
known as astrometry.
STIS
The Space Telescope Imaging Spectrograph (STIS) is currently
not operating, but is a versatile multi-purpose instrument
taking full advantage of modern technology. It combines a
camera with a spectrograph and covers a wide range of
wavelengths from the near-infrared region into the ultravio-
let.
NICMOS
The Near Infrared Camera and Multi-Object Spectrometer
(NICMOS) is an instrument for near-infrared imaging and
spectroscopic observations of astronomical targets. NICMOS
detects light with wavelengths between 800 and 2500
nanometres.
ACS
ACS is a so-called third generation Hubble instrument. Its
wide field of view is nearly twice that of Hubble’s previous
workhorse camera,WFPC2. The name, Advanced Camera for
Surveys, comes from its particular ability to map relatively
large areas of the sky in great detail.
Primary mirror
Hubble’s primary mirror is made of a special glass coated with
aluminium and a special compound that reflects ultraviolet
light. It is 2.4 metres in diameter and collects the light from
stars and galaxies and reflects it to the secondary mirror.
COSTAR
COSTAR is not really a science instrument: it is the
corrective optics package that replaced the High
Speed Photometer (HSP) during the first servicing
mission. COSTAR was designed to correct the effects
of the primary mirror’s aberration.
HUBBLE'S INSTRUMENTS SYSTEMS
ESASupport systems
Containing essential support systems such as
computers, batteries, gyroscopes, reaction wheels
and electronics.
Communication antennae
Once Hubble observes a celestial object, its onboard
computers convert the image or spectrum into long
strings of numbers that, via one of Hubble's two
antennae, are sent to one of the two satellites that form
the Tracking and Data Relay Satellite System (TDRSS).
Secondary mirror
Like the primary mirror, Hubble’s secondary mirror is made of
special glass coated with aluminium and a special compound
to reflect ultraviolet light. It is 13 metre in diameter and
reflects the light back through a hole in the primary mirror
and into the instruments.
Solar panels
Hubble’s third set of solar arrays produce enough
power to enable all the science instruments to
operate simultaneously, thereby making Hubble
even more efficient. The panels are rigid and unlike
earlier versions, do not vibrate, making it possible
to perform stable, pinpoint sharp observations.
WFPC2
WFPC2 was Hubble’s workhorse camera until the installation
of ACS. It records excellent quality images through a selection
of 48 colour filters covering a spectral range from far-
ultraviolet to visible and near-infrared wavelengths.WFPC2
has produced most of the stunning pictures that have been
released as public outreach images over the years.
Aperture door
Hubble’s aperture door can be closed if
Hubble is in danger of letting light
from the Sun, Earth or Moon into the
telescope.
2526
For astronomers, the most important components of Hubble are its scientific instru-
ments. There are two groups of instruments in Hubble, known as ‘radial’ mounted
around Hubble’s waist; and ‘axial’ fitted at the back end of the spacecraft. The
different instruments serve different purposes: some are for making images and some
are designed to dissect the light from the stars and galaxies by spreading it out to form
a rainbow-like spectrum.
Hubble’s unique vantage point in space makes it capable of observing over a broader
band of wavelengths than ground-based (optical) telescopes. It can observe ultraviolet
light that is completely absorbed by Earth’s atmosphere. It can also see much more
clearly in the near-infrared part of the spectrum where the Earth’s sky is very bright and
not very transparent. These forms of light reveal properties of celestial objects that are
otherwise hidden fromus.
Some instruments, like ACS the Advanced Camera for Surveys are better for visible
and ultraviolet observations, some, like NICMOS the Near Infrared Camera and Multi-
object Spectrograph are designed for infrared observations.
Different mechanical and electrical components keep Hubble functioning. The power
for Hubble comes from solar panels on the side that convert sunlight into electricity.
Gyroscopes, star trackers and reaction wheels keep Hubble steady and pointing in the
right direction for hours or days at a time: not too close to the Sun, Moon or Earth as
they would destroy the light-sensitive instruments; and accurately towards the objects
being studied. The Hubble pointing and tracking systemis a triumph of engineering and
relies on a complex hierarchy of systems that keep the entire spacecraft stable in space
to an almost incredible precision. It can point to the same spot on the sky for weeks at a
timewithout deviating bymore than a fewmillionths of theMoon’s diameter.
Hubble has several communications antennae on its side that are used for sending
observations and other data down to Earth. Hubble sends its data first to a satellite in
the Tracking and Data Relay Satellite System, which then downlinks the signal toWhite
Sands, New Mexico, USA. The observations are sent from NASA in the United States to
Europewhere they are stored in a huge data archive inMunich, Germany.
No single nation could undertake such an enormous project. Hubble has been a major
collaboration between NASA and ESA, the European Space Agency, from an early stage
in its life. ESA has contributed an instrument, two sets of Solar Arrays, various electronic
systems and a substantial group of people to the project.
–
–
––
–
–
No single nation could undertake
such an enormous project27
Hubble facts
A few of the lesser known facts about Hubble are: it has orbited the Earth more than 80 000 times
and travelled nearly 4 billion kilometres – more than 25 times the distance to the Sun. It has made
700 000 exposures of 22 000 different astronomical targets, producing 20 Terabytes of data that
have resulted in about 6 000 scientific papers–avery high number even given the considerable
outlay on the project.
Orbital altitude: 568 km
Orbital time: 96minutes
Mission lifetime: 20 years
Exposures: approx. 700 000
Different objects observed: approx. 22 000
Data:more than 20 TB downloaded to Earth
Distance travelled: 80 000 times around the Earth (nearly 4 billion kilometres)
Number of scientific papers: approx. 6 000
Angular resolution: 0.05 arc-seconds
Wavelength range: 110 – 2400 nm(fromultraviolet to near-infrared)
Mirror diameter: 2.4m
Pointing stability: Hubblemoves less than 0.007 arc-seconds in 24 hours
Costs: ESA's financial contribution over 20 years is 593million Euros
Dimensions: 15.9metres long, diameter 4.2metres
Launch Date: 24 April, 1990, 12:33:51 UT
Weight: 11 110 kg!!!!!!!!!!!!!!!!
Hubble has been of paramount importance to European astronomy. European
astronomers regularly win more than 15 percent of the observing time with
Hubble, resulting in several thousand scientific publications over the years. Much
of the work done by astronomers with Hubble is complemented by observations
madewith ground-based and other space telescopes.
Two groups of European specialists work with Hubble. There are 15 people from
ESA currently working at the Space Telescope Science Institute in the USA, and 20
others make up the Space Telescope–European Coordinating Facility in Munich,Germany.PLANETARY TALES
Planetary systems are made up of material leftover from the forma-
tion of their parent star. Astronomers expect the formation of
‘debris disks’ to be a common result of star formation and so expect there
to be many ‘Solar Systems’ awaiting discovery: indeed, over the last few
years, the first hundred or so of these have already been found around
nearby stars. Hubble performs long-termstudies ofmembers of our Solar
Systemand hasmade unique observations of planets in others.
A 'terrestrial' planet orbiting a sun-
like star (artist's impression)
In contrast to the successful
searches for massive gas giants like
Jupiter, finding small, Earthlike,rocky planets around other stars
will be a very difficult task. None
have been found yet although
experiments are being planned to
search for, and eventually to study,them. The goal is, of course, to
search for signs of habitation.
29
3
ESA30
There are no boundaries in space. In this vast Universe, our closest relatives are the
objectswithin the Solar System:we share the same origin and the same destiny.
Our Solar System was formed about four and a half billion years ago from a huge gas
cloud. Ironically, it could have been the deadly force of a thermonuclear blast from an
exploding star in the vicinity that triggered our creation. The devastating force of the
blast may have disturbed the precarious equilibrium of the original gas cloud, causing
some of the matter to collapse inwards and creating a new star, our Sun. A minute
percentage of the collapsing matter became the multifaceted assembly of planets that
we have around us today.
We are, in other words, just the leftovers of our Sun’s birth. The planets were born in the
rotating disk of dust and gas left behind as our mother star was formed. The rocky
planets formed in the inner Solar System while the enig
sizable planets
could maintain their gaseous surroundings and the last wisps of the tenuous cloud
between the planets was whipped away. So, in our Solar System’s zoo of celestial bodies
there are both rockyworlds and giant gaseous planets.
Even now, there is no exact estimate of how much matter or even how many planets
exist within our Solar System. Since Pluto’s discovery in the 1930s, and its satellite
Charon’s in the 1970s, astronomers have tried to figure out if there is anything else out
there beyond the ninth planet.
In 2003, Hubble spotted something moving fast enough across the background of
faraway stars to be an object within the Solar System. Estimates show that it could be
about the size of a planet and it has been named Sedna, after an Inuit goddess. Sedna
may be 1500 km in diameter about three quarters the size of Pluto, but it is so far
away that it appears as just a small cluster of pixels even to Hubble. Nevertheless, it is
the largest object discovered in the Solar System since Pluto. The Sun is about 15 billion
km from Sedna 100 times further than Earth’s distance from the Sun and barely
gives out as much light and heat as the full moon. So Sedna is engulfed in an eternal
bleakwinter.
Sedna is not the only mysterious object out there. Debris from the formation of the
planets is still floating everywhere in the form of asteroids and comets of various
shapes and sizes. Sometimes their orbits can lead themon catastrophic courses.
matic gas giants were formed
further out. And then, when a fierce wind of smashed atoms began to blow from the
Sun – or perhaps from hot nearby stars or a nearby supernova – only
–
––
We are just the leftovers
of our Sun’s birth31
Comet impact
This true colour image of the giant
planet Jupiter, taken with Hubble's
WFPC2 camera, reveals the impact
sites of fragments 'D' and 'G' from
Comet Shoemaker-Levy 9.
H. Hammel, MIT and NASAESA32
NASAESA, J. Bell (Cornell U.), and M.Wolff (Space Science Inst.)33
Hubble is able to react quickly to dramatic events occurring within the Solar System. This
has allowed it to witness the dramatic plunge of comet Shoemaker-Levy 9 into Jupiter’s
atmosphere. The comet was torn into numerous pieces by Jupiter's gravitational pull
when it passed the massive planet in the summer of 1992. Two years later, these
fragments returned and drove straight into the heart of Jupiter’s atmosphere.
Hubble followed the comet fragments on their last journey and delivered stunning high-
resolution images of the impact scars. Our Earth could easily fit into any of these black
bruises. The consequences of the impact could be seen for days afterwards and, by
studying the Hubble data, astronomers were able to assemble fundamental information
about the composition and density of the giant planet’s atmosphere.
Space probes with sophisticated instruments are frequently sent to the planets of our
Solar System. They provide close-up investigations of these distant places. While a few
go into orbit around their destination planets and so can monitor them for long periods,most fly by quickly and gather some snapshots on the way. Although Hubble’s high
resolution images can be surpassed by close-up pictures taken by planetary space
probes, Hubble has the advantage of being able to carry out long-term monitoring. This
is crucial for the study of planetary atmospheres and geology. Weather systems can
revealmuch about underlying atmospheric processes.
Hubble provides its own unique service, by opening a window on our Solar System that
is never closed. It can be used tomonitor almost any planet in the Solar System(Mercury
is too close to the Sun) regularly and to provide a long-term view of changes that is
impossible to achieve in any other way. This is how we see developing storms on other
planets; their changing seasons; and unprecedented views of other atmospheric events,such as aurorae, known on Earth as the northern and southern lights.
Hubble’s extremely high resolution and sensitivity have resulted in unique observations
of objects within the Solar System, providing amazing images and rich streams of data
about the nature of these bodies. Hubble has seen unprecedented detail in Jupiter’s
aurorae: while similar to those seen above the Earth's polar regions, they are almost
1000 times more energetic and much more complex. Jupiter’s aurorae can only be seen
in ultraviolet light and, so they can never be studiedwith ground-based telescopes.
Astonishing images of Saturn’s aurorae have also been taken and reveal that the
glowing curtains of ultraviolet light rise more than a thousand kilometres above the
cloud tops of the planet’s north and south poles.
Mars up close
This view of Mars, the sharpest
photo of it ever taken from the
vicinity of Earth, reveals small
craters and other surface markings
only a few tens of kilometers
across. The Advanced Camera for
Surveys (ACS) aboard Hubble took
this image on the 24th August
2003, just a few days before the red
planet's historic 'close encounter'
with Earth.
Hubble has opened a window on our
Solar System that is never closed34
Glowing curtains of ultraviolet light
that rise more than a thousand
kilometres above the cloud tops
NASA, ESA, J. Clarke (Boston University, USA), and Z. Levay (STScI)35
Even though the solar systemclearly hasmanymore surprises in store for us, Hubble has
also turned its eye out towards other stars, looking for planetary systems. Astronomers
are beginning their search for life elsewhere in the Universe. The primary objective is to
find earth-like planets. These are verymuch harder to detect thanmassive ‘Jupiters’ and,as yet, none have been found.
Hubble had been in orbit for five years when the first planet around a Sun-like star was
discovered. Although it was not designed to study these objects, Hubble’s versatility has
allowed it to make significant contributions to this intensely interesting area of study.
For example, Hubble’s high resolution has been indispensable in the investigation of the
gas and dust disks, dubbed ‘proplyds’, around the newly born stars in the Orion Nebula.
The proplyds may very well be young planetary systems in the early stages of creation.
The details revealed by Hubble are superior to anything seen to date with ground-based
instruments and, thanks to Hubble’s capability, we now have visual proof that dusty
disks around young stars are common.
Hubble has also measured the mass of a planet – only the second time such a calcula-
tion has been performed with any accuracy – by detecting the way in which the planet
causes its star to wobble. Hubble found the oldest planet so far known: it orbits a tiny
stellar husk, which was once a blazing star like the Sun, and is located 5,600 light years
away. The planet was once like Jupiter and is around 13 billion years old, almost three
times older than our own planetary system.
Saturn's aurora
Astronomers combined ultraviolet
images of Saturn's southern polar
region with visible-light images of
the planet and its rings to make
this picture. The auroral display
appears blue because of the glow of
ultraviolet light. In reality, the
aurora would appear red to an
observer at Saturn because of the
presence of glowing hydrogen in
the atmosphere. The ultraviolet
image was taken on 28 January
2004 by Hubble's Imaging
Spectrograph (STIS). The ACS was
used on 22 March 2004 to take the
visible-light image.
Io's shadow cast on Jupiter
Jupiter's volcanic moon Io zips
around Jupiter every 1.8 days. Here,Hubble'sWFPC2 captures the 3,640
km diameter moon casting its black
shadow on the giant planet.
J. Spencer (Lowell Observatory) and NASAESA36
With ground-based telescopes, the gas giant planet HD 209458b, 150 light-years from
Earth, was discovered in 1999 through its slight gravitational tug on its ‘mother-star’. In
2001 Hubblemade highly accuratemeasurements of the dip in the star’s light when the
planet passed in front. The first detection of an atmosphere around an extrasolar planet
was also made in this object. The presence of sodium as well as evaporating hydrogen,oxygen and carbon was detected in light filtered through the planet's atmosphere as it
passed in front of the star.
Measuring the chemical makeup of extra-solar planetary atmospheres will one day
allow us to search for the markers of life beyond Earth. All living things breathe and this
changes the composition of the atmosphere in readily detectable ways. Light-
harvesting plants will impose their own colourful ‘biomarkers’ on the light reflected
fromplanetary surfaces.
Astronomers believe there are many planetary systems similar to ours orbiting other
stars throughout the Galaxy. The birth, life, death and rebirth of stars continues in an
unending cycle in which stars, born of gas and dust, will shine for millions or billions of
years, die and return as gas and dust to form new stars. The by-products of this contin-
ual process include planets and the chemical elements thatmake life possible.
And so, through the entire vastness of space, the eternal ebb and flowof life continues.
One day we will search for the
markers of life beyond Earth10
Transiting exoplanet
This artist's impression shows the
planet HD 209458b transiting its
parent star. Hubble's spectrometer
STIS has been used to detect – for
the first time – the signature of the
giant planet's atmosphere
evaporating off into space.
Astronomers call HD 209458b a
'hot Jupiter' because it orbits much
closer to its star than our own
planet of that name.
ESACaption caption caption caption caption
caption. Caption caption caption caption
caption caption. Caption caption caption
caption caption caption. Caption caption
caption caption caption caption. Caption
caption caption caption caption caption.
T
he Sun is a typical star amongst the 100 billion or so in our Milky
Way galaxy. Some are more massive – living relatively brief and
spectacularly brilliant lives; some are less so and can live longer than the
present age of the Universe. Stars are chemical factories, constructing the
elements from which we and the Earth are made: most of the atoms in
the newly-formed Universe were hydrogen and helium and the stars had
to convert this raw material into what we need for life. Some short-lived
phases of a star’s evolution have produced themost remarkably beautiful
structures that Hubble has ever imaged.
THE LIVES OF STARS
39
M17 in Sagittarius
ThisWFPC2 image, taken in the
light of glowing hydrogen (green),oxygen (blue) and sulphur (red),shows a small region within the
star-forming Omega or Swan
nebula. The wave-like patterns of
gas have been sculpted and
illuminated by a torrent of
ultraviolet radiation from young,massive stars that lie outside the
picture to the upper right.
4
European Space Agency, NASA, and J. Hester (Arizona State University)40
Jeff Hester and Paul Scowen (Arizona State University), and NASAESAOur Sun, that vital source of energy for life on Earth, is a star. A totally unexceptional
star, just like billions of others that we can find throughout the Galaxy.
A star is a sphere of glowing gas. It forms out of a cloud of gas compressed by gravity and
releases energy steadily, throughout its life, because a chain of nuclear reactions is
continuously taking place in its core. Most stars combine hydrogen atoms to form
helium through the process called nuclear fusion; the same process that powers a
devastating hydrogen bomb. In fact, stars are nuclear factories that convert lighter
elements into heavier elements in a series of fusion reactions. They will keep glowing
until they run out of ‘fuel’. And that’s it; a star’s life; a quiet beginning and a steady
progress to a sometimes violent end. But how can we be certain of this picture when an
individual star like the Sun outlives humans by a factor of a fewhundredmillion?
To investigate the lifecycle of a particular organism on Earth, we don’t have to track an
individual specimen’s entire life. Instead, we can observemany of the organisms at once.
This will show us all the different phases of its life cycle. For example, each stage of a
person’s life is a snapshot of the human experience. And so it iswith stars.
Stars live and die overmillions, or even billions, of years. Even themost reckless stars live
for at least one million years; longer than the entire history of mankind! And this is why
it is extremely unusual to be able to track age-related changes in individual stars.
To learnmore about stars, wemust sample different stars at every stage of life and piece
together the whole cycle from birth to death. Hubble’s vivid images have documented
the tumultuous birth of stars and delivered many astonishing pictures documenting
their evolution. The birth of stars in neighbouring stellar ‘maternity wards’ can be used
as a timemachine to replay the events that created our Solar System.
Hubble has gone beyond what can be achieved with other observatories by linking
together studies of the births, lives and deaths of individual stars with theories of stellar
evolution. In particular, Hubble’s ability to probe individual stars in other galaxies
enables scientists to investigate the influence of different environments on the lives of
stars. These are crucial data that allow us to extend our understanding of the MilkyWay
to other galaxies.
41
Pillars of creation
This image, taken withWFPC2 in
1995, has become a universally
recognised icon. Part of M16, the
Eagle nebula, these Evaporating
Gaseous Globules (EGGs) are
protrusions of cool, dusty,molecular gas into hotter, more
tenuous material excited by young,hot stars in this nearby star-
forming region.
Cosmic recycling
Lighter elements such as carbon, nitrogen, oxygen, silicon aremade as a result of fusion reactions taking place in stars.
The heavier elements, however, are built during the cataclysmic stellar explosions we know as supernovae.When the
Universe was very young—before any stars and galaxies had formed—hydrogen and helium were overwhelmingly
its dominant atomic constituents.
A star is a sphere of glowing gasColourful Tarantula
The Tarantula nebula is situated 170,000
light-years away in the Large Magellanic
Cloud (LMC), visible to the naked eye in
the Southern sky. Supernovae have
already detonated in this huge star-
forming region and the resulting blast
waves have compressed the gas into
filaments and sheets. This mosaic of
images was created using Hubble
archival data by 23 year old amateur
astronomer, Danny LaCrue. It was
constructed from 15 individual exposures
taken through three narrow-band filters.
ESANASA, ESO and Danny LaCrue44
Hubble's view of Orion
This spectacular colour panorama
of the centre of the Orion Nebula is
one of the largest pictures ever
assembled from individual images
taken with the Hubble telescope.
The richly detailed tapestry
revealed by Hubble shows a
churning, turbulent star factory
set within a maelstrom of flowing,luminescent gas. Though this 2.5-
light-year-wide view is but a small
portion of the entire nebula, it
includes a star cluster and almost
all of the light from the bright
glowing clouds of gas that make
up the nebula.
C.R. O'Dell (Rice University), and NASAESAProto-Solar Systems?
Disks around young stars (also known as
circumstellar or protoplanetary disks) are
thought to be made up of 99% gas and
1% dust. Even that small amount of dust
is enough to make the disks opaque and
dark at visible wavelengths. These dark
disks are seen here because they are
silhouetted against the bright backdrop
of the hot gas of the Orion nebula.
Hubble has often had to work hard for this information because these important clues
about our genesis lie hidden behind the veil of gently glowing, dust-laden molecular
cloudswhere stars are formed.
There are stars forming throughout the Universe. Enormous glowing pillars of dusty
hydrogen gas stand sentinel over their cradles, basking in the light of nearby, newly-
formed stars.
Hubble’s ability to observe infrared light enables it to penetrate the dust and gas and
reveal the newly born stars as never before.
One of themost exciting of Hubble’smany discoveries was the observation of dust disks
surrounding some newborn stars, buried deep inside the Orion Nebula. Here we are
actually seeing the creation of new solar systems where planets will eventually form;
just as they did in our own Solar Systemfour and a half billion years ago.
In the first stages of their lives, stars can stock up on gas from their original birth cloud.
Material falling into the star creates bubbles or even jets as it is heated and blasted
along a path that follows the star's rotation axis, like an axle through awheel.
Oftenmany stars are born fromthe same cloud of gas and dust. Somemay stay together
through their whole lifetime, keeping step as they evolve, like the childhood friends that
you keep for life.
45
Important clues about our genesis
lie hidden behind the veil of gently
glowing, dust-laden molecular clouds
Mark McCaughrean (Max-Planck-Institute for Astronomy), C. Robert O'Dell (Rice University), and NASAESAThe Carina Nebula
Previously unseen details of a mysterious,complex structure within the Carina Nebula
(NGC 3372) are revealed by this image of the
'Keyhole Nebula', obtained using four
different pointings of theWFPC2 camera
through six colour filters. The picture is
dominated by a large, approximately circular
feature, which is part of the Keyhole Nebula,named in the 19th century by Sir John
Herschel. This region, about 8000 light-years
from Earth, is located adjacent to the
famous explosive variable star Eta Carinae,which lies just outside the field of view
toward the upper right. The Carina Nebula
also contains several other stars that are
among the hottest and most massive
known, each about 10 times as hot, and 100
times as massive, as our Sun.
NASAESA, The Hubble Heritage Team (AURASTScI)48
The stars in a cluster will all have the same age, but will have a range of different
masses. And thismeans that very different destinies await them.
Human existence is the mere blink of an eye compared with the life of a star, so the
direct observation of a transition between the different stages of a star’s life can only
come about by lucky chance. Hubble uses its stability and exceptionally sharp focus to
Young star's jet
This view of a 5 trillion kilometre
long jet called HH-47 reveals a
very complicated jet pattern
which indicates the star (hidden
inside a dust cloud near the left
edge of the image) might be
wobbling, possibly caused by the
gravitational pull of a companion
star.
Human existence is the mere blink of an eye
compared with the life of a star
J. MorseSTScI, and NASAESA49
reveal changes on cosmic scales over periods of only a few years. From the ground it is
usually not possible to see this kind of evolution taking place over such short periods. In
the Universe, this sort of action normally takes place on timescales of many thousands
or even millions of years, so being able to follow real time changes in astronomical
objects is a considerable asset.
At the other extreme of the stellar life cycle, Hubble has monitored Supernova 1987A
since 1991, four years after it exploded. The result is a series of stunning observations
that show the evolution following the violent explosion witnessed nearly two decades
ago.
The regular monitoring of an even older supernova remnant, the Crab Nebula, has
enabled Hubble to capture the display ofmatter and antimatter particles propelled close
to lightspeed by the Crab pulsar, a rapidly rotating neutron star. Thanks to Hubble,scientists can directly follow the motion of the gas remnant left behind by the super-
nova explosionwitnessed by Chinese astronomers in 1054.
Not all elderly stars end their lives as supernovae and Hubble has followed the final
stages of their lives, with their very different outcomes. One such elderly star V838
Monocerotis, located about 20,000 light-years from Earth put out a brief flash of energy
that illuminated the surrounding dust. The progress of the light echo across the dust
was captured by Hubble in a film-like sequence of unprecedented clarity.
The stars containing the most mass end their lives cataclysmically, destroying them-
selves in titanic stellar explosions known as supernovae. For a few gloriousmonths, each
becomes one of the brightest objects in the entire Universe, outshining all the other
stars in its parent galaxy.
Since its launch in 1990, Hubble has watched the drama unfold in Supernova 1987A, the
nearest exploding star inmodern times. The telescope has beenmonitoring a ring of gas
surrounding the supernova blast.
Hubble has observed the appearance of bright spots along the ring, like gemstones on a
necklace. These cosmic ‘pearls’ are now being lit by supersonic shocks unleashed during
the explosion of the star.
The ruins of an exploding star can hide a powerful engine. Hubble has probed the
mysterious heart of the Crab Nebula, the tattered remains of an exploding star, vividly
described by Chinese astronomers in 1054, and has revealed its dynamic centre. The
innermost region of this nebula harbours a special type of star, a pulsar. This star rotates
like a beacon, emitting light and energy in a beam. And it energizes and illuminates the
vast nebula of dust and gas surrounding it.The Crab Nebula
Much of the light emitted by an
object like the Crab Nebula comes
from what astronomers call a ‘non-
thermal’ process. Electrons,travelling at speeds close to that of
light, spiral around lines of
magnetic field and so produce
radiation covering the entire
electromagnetic spectrum, fromX-
rays to radio waves. This is why the
pictures of the Crab taken in X-rays
and optical light look so similar.
This is a composite image of the
Crab Nebula showing the X-rays
(blue), and optical (red) radiation.
Light echo movie
In fifteen highly productive years, Hubble has allowed us to
observe some stars ageing in real time. The telescope has
produced startling ‘movies’ that allow us to witness how
some of them do modify their appearance over this minute
span of astronomical time.
50
NASAESAASUJ. Hester et al.V838 Monocerotis
Some of the most impressive
celestial ‘movies’ are created by
pulses of light travelling out from a
stellar explosion like a flash from a
camera. As the ‘sphere of light’
expands away from its origin, it can
illuminate surrounding material to
produce what we call ‘light-echoes’.
These produce the illusion of
material in rapid motion while, in
reality, it is the pulse of light that is
moving.
NASA, the Hubble Heritage Team (AURASTScI) and ESA
51Nordic Optical Telescope and Romano Corradi (Isaac Newton Group of Telescopes, Spain)
5253
Wide angle Cat's Eye
Wide angle view of the enormous
but extremely faint halo of gaseous
material surrounding the Cat's Eye
Nebula showing material ejected
during earlier active episodes in the
star's evolution. This probably
happened some 50,000 to 90,000
years ago.
However, not all stars end their lives so violently. Sun-like stars cool down once they run
out of hydrogen. The centre collapses in on itself and the heavier elements are burnt,causing the outer layers to expand and leak slowly into space. At this stage in a star’s life,it is called a red giant.
Our Sun will become a red giant in a few billion years. At that time, it will expand so
much that it will swallowMercury, Venus and our planet aswell.
But these stars are not finished quite yet. They can still evolve into something extraordi-
nary. Just before they breathe their last breath, stars like our Sun go out in a final blaze of
glory.
In its final stages of nuclear fusion, stellar winds blow from the star, causing the rem-
nants of the red giant to swell to an enormous size. At the heart of this expansion, the
exposed heart of the star, an intensely hot dwarf, floods the gaseous envelope with
powerful ultraviolet light,making it glowin awhole range of beautiful colours.
Hubble's close up view of the Cat's
Eye
Detailed view from Hubble
focussing on central regions of the
Cat's Eye Nebula seen on the
previous page. Although this
nebula was among the first
planetary nebula ever to be
discovered, it is one of the most
complex planetary nebulae ever
seen in space. A planetary nebula
forms when Sun-like stars gently
eject their outer gaseous layers to
form bright nebulae with amazing
twisted shapes.
The Sun will swallow Mercury, Venus
and our planet as well
ESA, NASA, HEIC and The Hubble Heritage Team (STScIAURA)54
Colours of Planetary Nebulae
The intensely hot stars at the centres of planetary nebulae flood the surrounding volume of gas with
ultraviolet light. This causes the atoms in the gas to lose one or more of their electrons. The resulting ‘ions’
radiate their energy away in a series of discrete colours that astronomers can observe to measure gaseous
temperatures, densities, chemical composition andmotions.
Since these amazing constructions looked a bit like the newly discovered planet Uranus
to early telescopic astronomers, they became known as planetary nebulae. From
telescopes on Earth they look like round (planet-shaped) objects with fairly simple
geometries. Hubble's keen perception shows that each planetary nebula is a distinct
individual. Howa normal Sun-like star evolves froma relatively featureless gas sphere to
a nebula with intricate glowing patterns is still one of the unsolved mysteries in
astronomy. Each additional image of the glowing patterns of gas intrigues astronomers
anew.
From its unique position high above the distorting atmosphere Hubble is the only
telescope that can observe the swollen outer envelope of these dying stars in full detail.
Hubble has been able to observe the expansion of the nebula itself directly. The Cat’s
Eye Nebula, for instance, has been observed with Hubble over a period of eight years
and is amarvellous example of the resolving power of the telescope.
A Collection of Planetary Nebulae
Hubble’s dazzling collection of
planetary nebulae show surpris-
ingly intricate, glowing patterns:
sprinkling jets, pinwheels, ghostly
filaments, supersonic shocks,concentric rings and intricate
tendrils of gas and fiery lobes.With
their gauzy symmetrical wings of
gas they resemble butterflies.
ESAIC 4406, the Retina nebula
Hubble reveals a rainbow of colours
in this dying star, called IC 4406.
Like many other so-called planetary
nebulae, IC 4406 exhibits a high
degree of symmetry. The nebula's
left and right halves are nearly
mirror images of one another. If we
could fly around IC 4406 in a
spaceship, we would see that the
gas and dust form a vast doughnut
of material streaming outward
from the dying star.
One of the greatest mysteries in modern
astrophysics is how a simple, spherical gas
ball can give rise to these intricate structures!
One of the greatest mysteries in modern astrophysics is how a simple, spherical gas ball
such as our Sun can give rise to these intricate structures!
For some planetary nebulae it is as if a cosmic garden sprinkler created the jets that
stream out in opposite directions; or could these amazing patterns possibly be sculpted
by themagnetic field of a companion star that funnels the emitted gas into a jet?
Whatever their cause, in only ten thousand years these fleeting cosmic flowers disperse
in space. Just as real flowers fertilize their surroundings as they decompose, the chemi-
cal elements produced inside the star during its life ......
15 YEARS OF DISCOVERY
BY LARS LINDBERG CHRISTENSEN BOB FOSBURY
ILLUSTRATIONS AND LAYOUT BY MARTIN KORNMESSER
This book is dedicated to all the hard working people in the USA and Europe who have made the Hubble
Space Telescope an incredible scientific successLars Lindberg Christensen ESAST-ECF
NASAESA Hubble Space Telescope
Garching 85748, Munich, Germany
lars@eso.org
Robert A. Fosbury ESAST-ECF
NASAESA Hubble Space Telescope
Garching 85748, Munich, Germany
rfosbury@eso.org
Library of Congress Control Number: 2005935456
ISBN-10: 0-387-28599-7
ISBN-13: 978-0387-28599-3
Printed on acid-free paper.
006 Springer Science+Business Media, Inc.
All rights reserved. This work may not be translated or copied in whole or in part
without the written permission of the publisher (Springer Science+Business
Media, Inc., 233 Spring Street, New York, NY 10013, USA), except for brief excerpts
in connection with reviews or scholarly analysis. Use in connection with any form
of information storage and retrieval, electronic adaptation, computer software, or
by similar or dissimilar methodology now known or hereafter developed is
forbidden.
The use in this publication of trade names, trademarks, service marks, and similar
terms, even if they are not identified as such, is not to be taken as an expression
of opinion as to whether or not they are subject to proprietary rights.
Printed in the United States of America. (EVB)
987654321
springer.com
·2HUBBLE
15 YEARS OF DISCOVERYThe Sombrero Galaxy
The Sombrero galaxy is one of the
Universe's most stately and photogenic
galaxies. The galaxy's hallmark is a
brilliant white, bulbous core encircled by
thick dust lanes comprising the spiral
structure of the galaxy.
NASAESA and The Hubble Heritage Team (STScIAURA)TABLE OF CONTENTS
FOREWORD BY MALCOLM LONGAIR 5
PREFACE 7
INTRODUCTION 9
1THE HUBBLE STORY 11
2HUBBLE UP CLOSE 21
3PLANETARY TALES 29
4THE LIVES OF STARS 39
5COSMIC COLLISIONS 59
6MONSTERS IN SPACE 71
7GRAVITATIONAL ILLUSIONS 81
8BIRTH AND DEATH OF THE UNIVERSE 89
9LOOKING TO THE END OF TIME 97
10 HUBBLE GALLERY 105The Hubble Space Telescope has undoubtedly had a greater public impact than any
other space astronomy mission ever. The images included in this beautiful volume
are quite staggering in what they reveal about the Universe we live in and have already
become part of our common scientific and cultural heritage.
But what about the science impact? It is no exaggeration to say that the scientific
output of the mission has far exceeded the most optimistic expectations of all those
involved in the planning and execution of the project.When I joined the project in 1977,I had to describe the astronomy programme I would carry out with the Hubble once it
was in operation in orbit. Seventeen years later when I receivedmy first data, I was quite
staggered by the quality of the images and also by the totally new science which they
revealed about the ways in which relativistic jets can illuminate the environments of
active galaxies. This is a repeated theme in essentially all areas explored by the
Telescope. The images are not only beautiful, but are full of spectacular new science,much of it undreamed of by the astronomers involved. A good example is the discovery
of protostellar discs seen in silhouette against the bright background of the Orion
Nebula. Another is the ability to discover distant star forming galaxies by imaging in a
number of wavebands. The observation of distant supernovae has enabled the present
acceleration of the Universe as a whole to be measured – an undoubted triumph. And
then there are the spectacular images of the Hubble Deep and Ultra-Deep Fields which
have revealed what are almost certainly young galaxies in the process of forming the
galaxies and larger scale structures we observe about us today. But these are only a few
random samples of the wealth of scientific knowledge which has accrued from the
mission. Every picture tells a wonderful story which has already been built into our
picture of the evolving Universe.
What are the lessons to be learned from this spectacular success? The route to new
understanding is through the ability to observe the Universe in new ways with tech-
niques, that extend observational capability by a factor of 10 or more. In the case of the
Hubble Space Telescope, the gains in angular resolution, or sharpness, and correspond-
ing sensitivity, as well as the remarkable stability of the instruments in the remote
environment of space, have given it unprecedented power to uncover new astrophysics.
The results are a wonderful tribute to the dedicated efforts of many scientists, astrono-
mers, engineers, managers and administrators, as well as to the vision of NASA and ESA
in enabling the Hubble Space Telescope to come about. Long may this vision and the
ability to inspire the public imagination continue as an essential means of deepening
our understanding of the Universe.
MalcolmLongair
4 April 2005
FOREWORD
5
NGC 346
Hubble's exquisite sharpness has
plucked out an underlying
population of infant stars
embedded in the nebula NGC 346
that are still forming from
gravitationally collapsing gas
clouds.
NASA, ESA and A. Nota (STScIESA)The long-term wellbeing and cultural development of humanity depend on scientific
research and technological development. The communication of scientific discoveries
and information about scientists and their work to the public are vital components of the
scientific process. However, the competition for attention in today’s mass-media market
is fierce.
This book takes a closer look at whatmay be the world’smost successful scientific project.
The fifteenth anniversary of Hubble’s launch, which took place on the 24th April 1990,presented the ideal opportunity for a spectacular project to seize the attention of the
public. The story of a journey through space and time revealed by the telescope is told in a
way that we hope will appeal especially to the younger generation. It will be their enthu-
siasmthat powers the future of the scientific endeavour.
We should like to thank Stefania Varano, Stuart Clark and Anne Rhodes who all worked on
the film manuscript that laid the foundation for important parts of this book. Unless
otherwise noted, the images in this book were taken by the NASAESA Hubble Space
Telescope and should be credited to NASA, ESA and the individual scientists (see
www.spacetelescope.org for the exact details).
Lars Lindberg Christensen and Bob Fosbury
Munich, 23 November 2005
PREFACE
The Cone Nebula
Radiation from hot, young stars
(located beyond the top of the
image) has slowly eroded the
nebula over millions of years.
Ultraviolet light heats the edges of
the dark cloud, releasing gas into
the relatively empty region of
surrounding space.
7
NASA, Holland Ford (JHU), the ACS Science Team and ESAINTRODUCTION
On 24 April 2005 the NASAESA Hubble Space Telescope will exceed its original
estimated lifetime of 15 years in orbit around the Earth. Hubble has been hugely
successful in many different areas of astronomy. How does it differ from other famous
telescopes?
Hubble orbits 600 km above the Earth's surface, placing it well above our image-
distorting atmosphere. It can be upgraded to take advantage of the latest developments
in instrumentation and software. The telescope is designed to take high-resolution
images and accurate spectra by concentrating light to form sharper images than are
possible from the ground, where the atmospheric 'twinkling' of the stars limits the
clarity. Therefore, despite its relatively modest aperture of 2.4 metres, Hubble is more
than able to compete with ground-based telescopes that have light-collecting (i.e.
mirror) areas 10 or even 20 times larger.
As well as being able to take sharper wide-field images, the other huge advantage
Hubble has over ground-based telescopes is its ability to observe the near-infrared and
ultraviolet light that is otherwise filtered away or masked by the atmosphere before it
can reach the ground.
In many areas of astronomical investigation, Hubble has pushed the limit of our knowl-
edge far, far beyond anything possible before its launch.
NGC 1300
NGC 1300 is considered to be
prototypical of barred spiral
galaxies. Barred spirals differ from
normal spiral galaxies in that the
arms of the galaxy do not spiral all
the way into the centre, but are
connected to the two ends of a
straight bar of stars containing the
nucleus at its centre.
9
NASA, ESA, and The Hubble Heritage Team (STScIAURA)THE HUBBLE STORY
Hubble finally allowed astronomers to realise their dream of
escaping the distorting effects of the Earth’s atmosphere to
make their observations. Achieving an operational observatory in space
was no small task: it took decades of planning and construction in a
project of such scale and cost that it demanded international collabora-
tion and the work of many dedicated engineers and scientists. The con-
cept of a telescope that could be upgraded and serviced regularly by
astronauts has resulted in capabilities and scientific discoveries far
beyond the expectations of the designers.
Hubble in Dock
The Hubble Space Telescope in the
Shuttle's payload bay during
Servicing Mission 3A.
11
1
NASA12
Hubble has vastly improved our view of the skies, sharpened our
perception of the Universe, and allowed us to penetrate ever deeper
toward the furthest edges of time and space.
Looking at the night sky we see the familiar twinkle of starlight; light that
has travelled enormous distances to reach us. But the stars themselves do
not flicker. The Universe is gloriously transparent, allowing light from
distant stars and galaxies to travel unchanged across space for thousands,millions, even billions of years. Then, in the last few microseconds before
the light reaches our eyes, the fine details in the view of those stars and
galaxies are snatched away. This is because, as light passes through our
atmosphere, the ever changing blankets of air, water vapour and dust, blur
the image that finally reaches us.
To solve this problem, astronomers around the world longed for an
observatory in space for many years. As early as 1923, the famed German
rocket scientist Hermann Oberth suggested a space-based telescope.
However, it was decades before technology caught up with the dream. The
American astronomer Lyman Spitzer proposed a more realistic plan for a
space telescope in 1946.
From a position in space above the Earth's atmosphere, a telescope could
detect the pristine light fromstars, galaxies, and other objects before their
images become distorted by the air we breathe. The result: much sharper
images than even the largest telescopes on the ground could achieve;
images limited in sharpness only by the quality of the optics.
In the 1970s, NASA – the National Aeronautics and Space Administration
and ESA the European Space Agency began working together to
design and build what would become the Hubble Space Telescope. The
name is a tribute to Edwin Powell Hubble, the founder of modern cosmol-
ogy, who, in the 1920s, first showed that not all we see in the sky lies
within the Milky Way. Instead, the cosmos extends far, far beyond.
Hubble's work changed our perception of mankind's place in the Universe
forever and the choice of naming th most magnificent telescope after
Edwin Hubble could not have beenmore appropriate.
–– –
is
For many years astronomers
longed for an observatory in space
ESAAbove the Ocean of Air
A ground-based telescope similar in size to Hubble
produced the image of the barred galaxy NGC 1300 on the
left. From its position in space above the Earth's
atmosphere, Hubble obtained the picture on the right of
the same galaxy. A technique called 'Adaptive Optics' can
be used to sharpen ground-based images and is extremely
effective when used with telescopes much larger than
Hubble (see box below).
Hubble vs. Adaptive Optics
The technique of Adaptive Optics can sharpen images from large ground-based telescopes to attain a
higher resolution and is being vigorously developed by astronomers around the World. Such
observations are highly complementary to those made by Hubble since they can exploit the collecting
power of much larger telescopes and can be used very effectively to feed such light-hungry
instruments as spectrographs. This higher resolution is achieved over a small patch of the sky and and
the technique works better at infrared wavelengths than it does in the visible spectrum used by
Hubble. Hubble remains supreme for mapping parts of the sky in exquisite detail in ultraviolet, visible
and near-infrared light.
Why is Hubble in orbit around the Earth?
The Earth’s atmosphere both absorbs and emits light. Beyond the blue end of the visible spectrum,the presence of ozone ensures that little ultraviolet light reaches the ground. Towards the red end and
beyond, into what astronomers call the near-infrared spectrum, there is considerable absorption by
water vapour and molecular oxygen but also, the sky is brightened by intense emission from the OH
radical (an unstable molecule consisting of an oxygen and a hydrogen atom). The visible spectrum
alone remains reasonably free from these effects. The entire spectral range from ultraviolet through
the near-infrared remains cleanly accessible to Hubble.
13
NASA, ESA, and The Hubble Heritage Team (STScIAURA)
Hillary MathisNOAOAURANSFIt took two decades of dedicated collaboration between scientists, engineers and
contractors from many countries before Hubble was finally finished. On April 24, 1990,five astronauts aboard the space shuttle Discovery left on a journey that changed our
vision of the Universe for ever! They deployed the eagerly anticipated Space Telescope in
an orbit roughly 600 kmabove the Earth’s surface.
On Earth, astronomers waited impatiently for the first results. After extensive technical
verification and testing, it soon became obvious that Hubble’s vision was anything but
sharp. The mirror had a serious flaw. A defect in the shape of the mirror prevented
Hubble from taking clear images. The mirror’s edge was too flat by only a mere fiftieth
of the width of a human hair. But to accomplish itsmission, Hubble had to be perfect in
every tiny detail. The disappointment was almost too great to bear. Not only amongst
astronomers, but also for American and European taxpayers.
Nevertheless, over the following two years, scientists and engineers fromNASA and ESA
worked together to design and build a corrective optics package, named COSTAR, for
Corrective Optics Space Telescope Axial Replacement. They were also able to build in a
perfect correction to the replacement camera that was already planned for installation.
Hubble’s masters now faced another tough decision: which science instrument should
they remove so that COSTAR could be fitted to Hubble? They eventually chose the High
Speed Photometer.
Hubble’s First Servicing Mission, performed in 1993, has gone down in history as one of
the supreme highlights of human spaceflight. It captured the attention of both astrono-
mers and the public at large to a degree that no Space Shuttle mission has since
achieved. Meticulously planned and brilliantly executed, the mission succeeded on all
counts. COSTAR and the new Wide Field and Planetary Camera 2 (WFPC2) corrected
Hubble’s eyesightmore perfectly than anyone had dared to hope.
Hubble'smirror problem
The cause of the problem was a defect in the 2.4 metre diameter primary mirror caused by the incorrect assembly of
the optical system used to test the mirror during manufacture. This resulted in what is called ‘spherical aberration’.
Fortunately, the test system remained untouched in the lab and it was possible for engineers to go back and use it to
reconstruct the nature of the error with great precision. This is why the Servicing Missions were so successful in
correcting Hubble’s optics to near-perfection.
14When the first images after the servicing came up on the computer screens it was
instantly clear that the ‘glasses’ taken up by the astronauts were completely correcting
Hubble's vision. Hubblewas finally in business!
That was only the first time the Space Shuttle visited Hubble. The telescope was
designed to be upgraded, enabling it to take advantage of new technologies and
software. When more advanced instruments, electrical or mechanical components
became available, they could be installed by the astronauts. So, just as a car needs
servicing so Hubble needs tuning-up from time to time. Engineers and scientists
periodically send the Shuttle to Hubble so that astronauts can upgrade it, using
wrenches, screwdrivers and power tools, just as amechanicmight with a car.
There have been four Servicing Missions so far: in 1993, 1997, 1999 and 2002. All were
undertaken by astronauts transported into space by NASA’s Space Shuttle. The next one
was supposed to occur in 2005, but was unfortunately cancelled in the aftermath of the
tragic Columbia crash.
Hubble’s future is uncertain. It was originally designed to operate for 15 years, but it is
now expected that its life could be extended to 20 years. Hubble is still producing the
most astonishing results that astronomers have ever known.
Changing instruments on Hubble
An astronaut exchanging cameras
on Hubble during the first Servicing
Mission in 1993.
15
Hubble was finally in business!
The centre of M100
The central regions of this grand-
design spiral galaxy taken before
and after Hubble's first servicing
mission. Left: A picture taken with
theWFPC1 camera in wide field
mode, on November 27, 1993, just
a few days prior to the STS-61
servicing mission. The effects of
optical aberration in HST's 2.4-
metre primary mirror blur starlight,smear out fine detail and limit the
telescope's ability to see faint
structure. Right: The same field
imaged withWFPC2 in its high
resolution channel. TheWFPC2
contains modified optics that
correct for Hubble's previously
blurry vision. For the first time the
telescope was able to resolve
cleanly faint structure as small as
30 light-years across in a galaxy
that is tens of millions of light years
away. The image was taken on
December 31, 1993.Fine Guidance Sensor
Astronaut Gregory J. Harbaugh
on the robot-arm manoeuvring a
Fine Guidance Sensor (FGS)
during the second Servicing
Mission.
16
NASAEventually, however, Hubble’s active life will end and the telescope will have to be guided
to a safe resting place in the ocean. It is too massive a spacecraft to burn up completely
in the atmosphere on re-entry and an uncontrolled plunge into the atmosphere is a
potential danger to residents of regions covering a broad swathe of our planet. The plan
is for an unmanned probe to link up with Hubble in orbit and dock with it. The probe will
leave behind a rocket-module so that, after some more years of fruitful observing,engineers on the ground can activate these rockets to control Hubble’s final descent into
the atmosphere.
However, the retirement of the Hubble Space Telescope will not signal the end of our
unrivalled view of the Universe. Rather, it will mark a new beginning, an era of even
more amazing discoveries and images fromspace. For Hubble has a successor.
The James Webb Space Telescope is currently being designed and may be launched as
early as 2011. When that day comes, scientists using the James Webb Space Telescope
hope to discover and understand evenmore about our fascinating Universe.
Space power tools
Astronaut Claude Nicollier, mission
specialist from the European Space
Agency (ESA), works at a storage
enclosure using one of the Hubble
power tools during the second of
three extravehicular activities (EVA)
of the third Servicing Mission.
17
Just as a car needs servicing so Hubble
needs tuning-up from time to time
NASAJamesWebb Space Telescope
Artist's impression of the JamesWebb
Space Telescope. Shaded behind a huge
sunscreen, the telescope and its
instruments will remain cool enough to
make ultra-sensitive infrared observations
of the most distant objects in the
Universe.
ESAESA21
HUBBLE UP CLOSE
The NASAESA Hubble Space
Telescope
Hubble is a large satellite; about 16
metres long or the size of a small
bus. It is also one of the most
complicated pieces of technology
ever built.
Hubble is a large satellite, about the size of a school bus. As well as
the 2.4 metre aperture telescope, it carries six scientific instru-
ments that can be regularly replacedwithmoremodern and capable ones
by space suited astronauts in orbit 600 km above the Earth. The systems
that allow it to be pointed and stabilised are very sophisticated and are
working extraordinarily well. Far from being an isolated resource for
astronomers, Hubble has worked in close harmony with other satellites
and ground-based observatories to lead, during its 15 years of operation,a huge leap in our understanding of the Universe.
222 ESA23
Hubble is a space-based telescope that is designed to be upgraded and to adapt to
changing needs and technologies. It orbits at almost 600 km above the Earth’s
surface, placing it well above most of our image-distorting atmosphere and takes about
96minutes to complete each orbit.
It is designed to take high-resolution images and accurate spectra by concentrating
starlight to form sharper images than are possible from the ground, where the atmo-
spheric ‘twinkling’of the stars limits the clarity.
To gather asmuch light as possible fromthe faint objects it studies, any telescope needs
the largest mirror it can get. Despite Hubble’s relatively modest mirror diameter of 2.4
metres, it is more than able to compete with ground-based telescopes that have mirrors
10 or 20 times larger in collecting area.
Hubble is a large satellite; about 16metres long or the size of a small bus. It is also one of
the most complicated pieces of technology ever built. It contains more than 3000
sensors that continually read out the status of the hardware so that technicians on the
ground can keep an eye on everything.
Time on Hubble is a precious commodity. Astronomers across the world regularly ask for
much more time than is available. Keeping Hubble working 247 is no small task. Not a
single secondmust be lost and all tasks either observations or so-called ‘housekeeping’
tasks, such as repositioning of the telescope, or uploading new observing schedules —
aremeticulously planned.
–
Hubble's orbit
Hubble orbits the Earth every 96
minutes at an altitude of nearly
600 km. The ever-changing aspect
of its orbit makes the process of
scheduling observations rather
complicated.
Is there competition between different observatories?
A large and ambitious astronomical research project today would use large amounts of time on a whole range of
different telescopes on the ground and in space. These telescopes, far from competing with one another, provide
different and complementary views of astronomical sources that greatly increase our ability to understand the
physical processes that create them. It is usually a case of the whole being greater than the sum of the parts.
Hubble plays an absolutely pivotal role inmany of these programmes.
Hubble is a space-based telescope
that is designed to be upgradedHubble exposed
This cutaway view of Hubble shows the
configuration of the telescope, the
instruments and the many other essential
systems that allow it to point, operate and
communicate.
24
FGS
Hubble has three Fine Guidance Sensors on board. Two of
them are needed to point and lock the telescope on the target
and the third can be used for position measurements, also
known as astrometry.
STIS
The Space Telescope Imaging Spectrograph (STIS) is currently
not operating, but is a versatile multi-purpose instrument
taking full advantage of modern technology. It combines a
camera with a spectrograph and covers a wide range of
wavelengths from the near-infrared region into the ultravio-
let.
NICMOS
The Near Infrared Camera and Multi-Object Spectrometer
(NICMOS) is an instrument for near-infrared imaging and
spectroscopic observations of astronomical targets. NICMOS
detects light with wavelengths between 800 and 2500
nanometres.
ACS
ACS is a so-called third generation Hubble instrument. Its
wide field of view is nearly twice that of Hubble’s previous
workhorse camera,WFPC2. The name, Advanced Camera for
Surveys, comes from its particular ability to map relatively
large areas of the sky in great detail.
Primary mirror
Hubble’s primary mirror is made of a special glass coated with
aluminium and a special compound that reflects ultraviolet
light. It is 2.4 metres in diameter and collects the light from
stars and galaxies and reflects it to the secondary mirror.
COSTAR
COSTAR is not really a science instrument: it is the
corrective optics package that replaced the High
Speed Photometer (HSP) during the first servicing
mission. COSTAR was designed to correct the effects
of the primary mirror’s aberration.
HUBBLE'S INSTRUMENTS SYSTEMS
ESASupport systems
Containing essential support systems such as
computers, batteries, gyroscopes, reaction wheels
and electronics.
Communication antennae
Once Hubble observes a celestial object, its onboard
computers convert the image or spectrum into long
strings of numbers that, via one of Hubble's two
antennae, are sent to one of the two satellites that form
the Tracking and Data Relay Satellite System (TDRSS).
Secondary mirror
Like the primary mirror, Hubble’s secondary mirror is made of
special glass coated with aluminium and a special compound
to reflect ultraviolet light. It is 13 metre in diameter and
reflects the light back through a hole in the primary mirror
and into the instruments.
Solar panels
Hubble’s third set of solar arrays produce enough
power to enable all the science instruments to
operate simultaneously, thereby making Hubble
even more efficient. The panels are rigid and unlike
earlier versions, do not vibrate, making it possible
to perform stable, pinpoint sharp observations.
WFPC2
WFPC2 was Hubble’s workhorse camera until the installation
of ACS. It records excellent quality images through a selection
of 48 colour filters covering a spectral range from far-
ultraviolet to visible and near-infrared wavelengths.WFPC2
has produced most of the stunning pictures that have been
released as public outreach images over the years.
Aperture door
Hubble’s aperture door can be closed if
Hubble is in danger of letting light
from the Sun, Earth or Moon into the
telescope.
2526
For astronomers, the most important components of Hubble are its scientific instru-
ments. There are two groups of instruments in Hubble, known as ‘radial’ mounted
around Hubble’s waist; and ‘axial’ fitted at the back end of the spacecraft. The
different instruments serve different purposes: some are for making images and some
are designed to dissect the light from the stars and galaxies by spreading it out to form
a rainbow-like spectrum.
Hubble’s unique vantage point in space makes it capable of observing over a broader
band of wavelengths than ground-based (optical) telescopes. It can observe ultraviolet
light that is completely absorbed by Earth’s atmosphere. It can also see much more
clearly in the near-infrared part of the spectrum where the Earth’s sky is very bright and
not very transparent. These forms of light reveal properties of celestial objects that are
otherwise hidden fromus.
Some instruments, like ACS the Advanced Camera for Surveys are better for visible
and ultraviolet observations, some, like NICMOS the Near Infrared Camera and Multi-
object Spectrograph are designed for infrared observations.
Different mechanical and electrical components keep Hubble functioning. The power
for Hubble comes from solar panels on the side that convert sunlight into electricity.
Gyroscopes, star trackers and reaction wheels keep Hubble steady and pointing in the
right direction for hours or days at a time: not too close to the Sun, Moon or Earth as
they would destroy the light-sensitive instruments; and accurately towards the objects
being studied. The Hubble pointing and tracking systemis a triumph of engineering and
relies on a complex hierarchy of systems that keep the entire spacecraft stable in space
to an almost incredible precision. It can point to the same spot on the sky for weeks at a
timewithout deviating bymore than a fewmillionths of theMoon’s diameter.
Hubble has several communications antennae on its side that are used for sending
observations and other data down to Earth. Hubble sends its data first to a satellite in
the Tracking and Data Relay Satellite System, which then downlinks the signal toWhite
Sands, New Mexico, USA. The observations are sent from NASA in the United States to
Europewhere they are stored in a huge data archive inMunich, Germany.
No single nation could undertake such an enormous project. Hubble has been a major
collaboration between NASA and ESA, the European Space Agency, from an early stage
in its life. ESA has contributed an instrument, two sets of Solar Arrays, various electronic
systems and a substantial group of people to the project.
–
–
––
–
–
No single nation could undertake
such an enormous project27
Hubble facts
A few of the lesser known facts about Hubble are: it has orbited the Earth more than 80 000 times
and travelled nearly 4 billion kilometres – more than 25 times the distance to the Sun. It has made
700 000 exposures of 22 000 different astronomical targets, producing 20 Terabytes of data that
have resulted in about 6 000 scientific papers–avery high number even given the considerable
outlay on the project.
Orbital altitude: 568 km
Orbital time: 96minutes
Mission lifetime: 20 years
Exposures: approx. 700 000
Different objects observed: approx. 22 000
Data:more than 20 TB downloaded to Earth
Distance travelled: 80 000 times around the Earth (nearly 4 billion kilometres)
Number of scientific papers: approx. 6 000
Angular resolution: 0.05 arc-seconds
Wavelength range: 110 – 2400 nm(fromultraviolet to near-infrared)
Mirror diameter: 2.4m
Pointing stability: Hubblemoves less than 0.007 arc-seconds in 24 hours
Costs: ESA's financial contribution over 20 years is 593million Euros
Dimensions: 15.9metres long, diameter 4.2metres
Launch Date: 24 April, 1990, 12:33:51 UT
Weight: 11 110 kg!!!!!!!!!!!!!!!!
Hubble has been of paramount importance to European astronomy. European
astronomers regularly win more than 15 percent of the observing time with
Hubble, resulting in several thousand scientific publications over the years. Much
of the work done by astronomers with Hubble is complemented by observations
madewith ground-based and other space telescopes.
Two groups of European specialists work with Hubble. There are 15 people from
ESA currently working at the Space Telescope Science Institute in the USA, and 20
others make up the Space Telescope–European Coordinating Facility in Munich,Germany.PLANETARY TALES
Planetary systems are made up of material leftover from the forma-
tion of their parent star. Astronomers expect the formation of
‘debris disks’ to be a common result of star formation and so expect there
to be many ‘Solar Systems’ awaiting discovery: indeed, over the last few
years, the first hundred or so of these have already been found around
nearby stars. Hubble performs long-termstudies ofmembers of our Solar
Systemand hasmade unique observations of planets in others.
A 'terrestrial' planet orbiting a sun-
like star (artist's impression)
In contrast to the successful
searches for massive gas giants like
Jupiter, finding small, Earthlike,rocky planets around other stars
will be a very difficult task. None
have been found yet although
experiments are being planned to
search for, and eventually to study,them. The goal is, of course, to
search for signs of habitation.
29
3
ESA30
There are no boundaries in space. In this vast Universe, our closest relatives are the
objectswithin the Solar System:we share the same origin and the same destiny.
Our Solar System was formed about four and a half billion years ago from a huge gas
cloud. Ironically, it could have been the deadly force of a thermonuclear blast from an
exploding star in the vicinity that triggered our creation. The devastating force of the
blast may have disturbed the precarious equilibrium of the original gas cloud, causing
some of the matter to collapse inwards and creating a new star, our Sun. A minute
percentage of the collapsing matter became the multifaceted assembly of planets that
we have around us today.
We are, in other words, just the leftovers of our Sun’s birth. The planets were born in the
rotating disk of dust and gas left behind as our mother star was formed. The rocky
planets formed in the inner Solar System while the enig
sizable planets
could maintain their gaseous surroundings and the last wisps of the tenuous cloud
between the planets was whipped away. So, in our Solar System’s zoo of celestial bodies
there are both rockyworlds and giant gaseous planets.
Even now, there is no exact estimate of how much matter or even how many planets
exist within our Solar System. Since Pluto’s discovery in the 1930s, and its satellite
Charon’s in the 1970s, astronomers have tried to figure out if there is anything else out
there beyond the ninth planet.
In 2003, Hubble spotted something moving fast enough across the background of
faraway stars to be an object within the Solar System. Estimates show that it could be
about the size of a planet and it has been named Sedna, after an Inuit goddess. Sedna
may be 1500 km in diameter about three quarters the size of Pluto, but it is so far
away that it appears as just a small cluster of pixels even to Hubble. Nevertheless, it is
the largest object discovered in the Solar System since Pluto. The Sun is about 15 billion
km from Sedna 100 times further than Earth’s distance from the Sun and barely
gives out as much light and heat as the full moon. So Sedna is engulfed in an eternal
bleakwinter.
Sedna is not the only mysterious object out there. Debris from the formation of the
planets is still floating everywhere in the form of asteroids and comets of various
shapes and sizes. Sometimes their orbits can lead themon catastrophic courses.
matic gas giants were formed
further out. And then, when a fierce wind of smashed atoms began to blow from the
Sun – or perhaps from hot nearby stars or a nearby supernova – only
–
––
We are just the leftovers
of our Sun’s birth31
Comet impact
This true colour image of the giant
planet Jupiter, taken with Hubble's
WFPC2 camera, reveals the impact
sites of fragments 'D' and 'G' from
Comet Shoemaker-Levy 9.
H. Hammel, MIT and NASAESA32
NASAESA, J. Bell (Cornell U.), and M.Wolff (Space Science Inst.)33
Hubble is able to react quickly to dramatic events occurring within the Solar System. This
has allowed it to witness the dramatic plunge of comet Shoemaker-Levy 9 into Jupiter’s
atmosphere. The comet was torn into numerous pieces by Jupiter's gravitational pull
when it passed the massive planet in the summer of 1992. Two years later, these
fragments returned and drove straight into the heart of Jupiter’s atmosphere.
Hubble followed the comet fragments on their last journey and delivered stunning high-
resolution images of the impact scars. Our Earth could easily fit into any of these black
bruises. The consequences of the impact could be seen for days afterwards and, by
studying the Hubble data, astronomers were able to assemble fundamental information
about the composition and density of the giant planet’s atmosphere.
Space probes with sophisticated instruments are frequently sent to the planets of our
Solar System. They provide close-up investigations of these distant places. While a few
go into orbit around their destination planets and so can monitor them for long periods,most fly by quickly and gather some snapshots on the way. Although Hubble’s high
resolution images can be surpassed by close-up pictures taken by planetary space
probes, Hubble has the advantage of being able to carry out long-term monitoring. This
is crucial for the study of planetary atmospheres and geology. Weather systems can
revealmuch about underlying atmospheric processes.
Hubble provides its own unique service, by opening a window on our Solar System that
is never closed. It can be used tomonitor almost any planet in the Solar System(Mercury
is too close to the Sun) regularly and to provide a long-term view of changes that is
impossible to achieve in any other way. This is how we see developing storms on other
planets; their changing seasons; and unprecedented views of other atmospheric events,such as aurorae, known on Earth as the northern and southern lights.
Hubble’s extremely high resolution and sensitivity have resulted in unique observations
of objects within the Solar System, providing amazing images and rich streams of data
about the nature of these bodies. Hubble has seen unprecedented detail in Jupiter’s
aurorae: while similar to those seen above the Earth's polar regions, they are almost
1000 times more energetic and much more complex. Jupiter’s aurorae can only be seen
in ultraviolet light and, so they can never be studiedwith ground-based telescopes.
Astonishing images of Saturn’s aurorae have also been taken and reveal that the
glowing curtains of ultraviolet light rise more than a thousand kilometres above the
cloud tops of the planet’s north and south poles.
Mars up close
This view of Mars, the sharpest
photo of it ever taken from the
vicinity of Earth, reveals small
craters and other surface markings
only a few tens of kilometers
across. The Advanced Camera for
Surveys (ACS) aboard Hubble took
this image on the 24th August
2003, just a few days before the red
planet's historic 'close encounter'
with Earth.
Hubble has opened a window on our
Solar System that is never closed34
Glowing curtains of ultraviolet light
that rise more than a thousand
kilometres above the cloud tops
NASA, ESA, J. Clarke (Boston University, USA), and Z. Levay (STScI)35
Even though the solar systemclearly hasmanymore surprises in store for us, Hubble has
also turned its eye out towards other stars, looking for planetary systems. Astronomers
are beginning their search for life elsewhere in the Universe. The primary objective is to
find earth-like planets. These are verymuch harder to detect thanmassive ‘Jupiters’ and,as yet, none have been found.
Hubble had been in orbit for five years when the first planet around a Sun-like star was
discovered. Although it was not designed to study these objects, Hubble’s versatility has
allowed it to make significant contributions to this intensely interesting area of study.
For example, Hubble’s high resolution has been indispensable in the investigation of the
gas and dust disks, dubbed ‘proplyds’, around the newly born stars in the Orion Nebula.
The proplyds may very well be young planetary systems in the early stages of creation.
The details revealed by Hubble are superior to anything seen to date with ground-based
instruments and, thanks to Hubble’s capability, we now have visual proof that dusty
disks around young stars are common.
Hubble has also measured the mass of a planet – only the second time such a calcula-
tion has been performed with any accuracy – by detecting the way in which the planet
causes its star to wobble. Hubble found the oldest planet so far known: it orbits a tiny
stellar husk, which was once a blazing star like the Sun, and is located 5,600 light years
away. The planet was once like Jupiter and is around 13 billion years old, almost three
times older than our own planetary system.
Saturn's aurora
Astronomers combined ultraviolet
images of Saturn's southern polar
region with visible-light images of
the planet and its rings to make
this picture. The auroral display
appears blue because of the glow of
ultraviolet light. In reality, the
aurora would appear red to an
observer at Saturn because of the
presence of glowing hydrogen in
the atmosphere. The ultraviolet
image was taken on 28 January
2004 by Hubble's Imaging
Spectrograph (STIS). The ACS was
used on 22 March 2004 to take the
visible-light image.
Io's shadow cast on Jupiter
Jupiter's volcanic moon Io zips
around Jupiter every 1.8 days. Here,Hubble'sWFPC2 captures the 3,640
km diameter moon casting its black
shadow on the giant planet.
J. Spencer (Lowell Observatory) and NASAESA36
With ground-based telescopes, the gas giant planet HD 209458b, 150 light-years from
Earth, was discovered in 1999 through its slight gravitational tug on its ‘mother-star’. In
2001 Hubblemade highly accuratemeasurements of the dip in the star’s light when the
planet passed in front. The first detection of an atmosphere around an extrasolar planet
was also made in this object. The presence of sodium as well as evaporating hydrogen,oxygen and carbon was detected in light filtered through the planet's atmosphere as it
passed in front of the star.
Measuring the chemical makeup of extra-solar planetary atmospheres will one day
allow us to search for the markers of life beyond Earth. All living things breathe and this
changes the composition of the atmosphere in readily detectable ways. Light-
harvesting plants will impose their own colourful ‘biomarkers’ on the light reflected
fromplanetary surfaces.
Astronomers believe there are many planetary systems similar to ours orbiting other
stars throughout the Galaxy. The birth, life, death and rebirth of stars continues in an
unending cycle in which stars, born of gas and dust, will shine for millions or billions of
years, die and return as gas and dust to form new stars. The by-products of this contin-
ual process include planets and the chemical elements thatmake life possible.
And so, through the entire vastness of space, the eternal ebb and flowof life continues.
One day we will search for the
markers of life beyond Earth10
Transiting exoplanet
This artist's impression shows the
planet HD 209458b transiting its
parent star. Hubble's spectrometer
STIS has been used to detect – for
the first time – the signature of the
giant planet's atmosphere
evaporating off into space.
Astronomers call HD 209458b a
'hot Jupiter' because it orbits much
closer to its star than our own
planet of that name.
ESACaption caption caption caption caption
caption. Caption caption caption caption
caption caption. Caption caption caption
caption caption caption. Caption caption
caption caption caption caption. Caption
caption caption caption caption caption.
T
he Sun is a typical star amongst the 100 billion or so in our Milky
Way galaxy. Some are more massive – living relatively brief and
spectacularly brilliant lives; some are less so and can live longer than the
present age of the Universe. Stars are chemical factories, constructing the
elements from which we and the Earth are made: most of the atoms in
the newly-formed Universe were hydrogen and helium and the stars had
to convert this raw material into what we need for life. Some short-lived
phases of a star’s evolution have produced themost remarkably beautiful
structures that Hubble has ever imaged.
THE LIVES OF STARS
39
M17 in Sagittarius
ThisWFPC2 image, taken in the
light of glowing hydrogen (green),oxygen (blue) and sulphur (red),shows a small region within the
star-forming Omega or Swan
nebula. The wave-like patterns of
gas have been sculpted and
illuminated by a torrent of
ultraviolet radiation from young,massive stars that lie outside the
picture to the upper right.
4
European Space Agency, NASA, and J. Hester (Arizona State University)40
Jeff Hester and Paul Scowen (Arizona State University), and NASAESAOur Sun, that vital source of energy for life on Earth, is a star. A totally unexceptional
star, just like billions of others that we can find throughout the Galaxy.
A star is a sphere of glowing gas. It forms out of a cloud of gas compressed by gravity and
releases energy steadily, throughout its life, because a chain of nuclear reactions is
continuously taking place in its core. Most stars combine hydrogen atoms to form
helium through the process called nuclear fusion; the same process that powers a
devastating hydrogen bomb. In fact, stars are nuclear factories that convert lighter
elements into heavier elements in a series of fusion reactions. They will keep glowing
until they run out of ‘fuel’. And that’s it; a star’s life; a quiet beginning and a steady
progress to a sometimes violent end. But how can we be certain of this picture when an
individual star like the Sun outlives humans by a factor of a fewhundredmillion?
To investigate the lifecycle of a particular organism on Earth, we don’t have to track an
individual specimen’s entire life. Instead, we can observemany of the organisms at once.
This will show us all the different phases of its life cycle. For example, each stage of a
person’s life is a snapshot of the human experience. And so it iswith stars.
Stars live and die overmillions, or even billions, of years. Even themost reckless stars live
for at least one million years; longer than the entire history of mankind! And this is why
it is extremely unusual to be able to track age-related changes in individual stars.
To learnmore about stars, wemust sample different stars at every stage of life and piece
together the whole cycle from birth to death. Hubble’s vivid images have documented
the tumultuous birth of stars and delivered many astonishing pictures documenting
their evolution. The birth of stars in neighbouring stellar ‘maternity wards’ can be used
as a timemachine to replay the events that created our Solar System.
Hubble has gone beyond what can be achieved with other observatories by linking
together studies of the births, lives and deaths of individual stars with theories of stellar
evolution. In particular, Hubble’s ability to probe individual stars in other galaxies
enables scientists to investigate the influence of different environments on the lives of
stars. These are crucial data that allow us to extend our understanding of the MilkyWay
to other galaxies.
41
Pillars of creation
This image, taken withWFPC2 in
1995, has become a universally
recognised icon. Part of M16, the
Eagle nebula, these Evaporating
Gaseous Globules (EGGs) are
protrusions of cool, dusty,molecular gas into hotter, more
tenuous material excited by young,hot stars in this nearby star-
forming region.
Cosmic recycling
Lighter elements such as carbon, nitrogen, oxygen, silicon aremade as a result of fusion reactions taking place in stars.
The heavier elements, however, are built during the cataclysmic stellar explosions we know as supernovae.When the
Universe was very young—before any stars and galaxies had formed—hydrogen and helium were overwhelmingly
its dominant atomic constituents.
A star is a sphere of glowing gasColourful Tarantula
The Tarantula nebula is situated 170,000
light-years away in the Large Magellanic
Cloud (LMC), visible to the naked eye in
the Southern sky. Supernovae have
already detonated in this huge star-
forming region and the resulting blast
waves have compressed the gas into
filaments and sheets. This mosaic of
images was created using Hubble
archival data by 23 year old amateur
astronomer, Danny LaCrue. It was
constructed from 15 individual exposures
taken through three narrow-band filters.
ESANASA, ESO and Danny LaCrue44
Hubble's view of Orion
This spectacular colour panorama
of the centre of the Orion Nebula is
one of the largest pictures ever
assembled from individual images
taken with the Hubble telescope.
The richly detailed tapestry
revealed by Hubble shows a
churning, turbulent star factory
set within a maelstrom of flowing,luminescent gas. Though this 2.5-
light-year-wide view is but a small
portion of the entire nebula, it
includes a star cluster and almost
all of the light from the bright
glowing clouds of gas that make
up the nebula.
C.R. O'Dell (Rice University), and NASAESAProto-Solar Systems?
Disks around young stars (also known as
circumstellar or protoplanetary disks) are
thought to be made up of 99% gas and
1% dust. Even that small amount of dust
is enough to make the disks opaque and
dark at visible wavelengths. These dark
disks are seen here because they are
silhouetted against the bright backdrop
of the hot gas of the Orion nebula.
Hubble has often had to work hard for this information because these important clues
about our genesis lie hidden behind the veil of gently glowing, dust-laden molecular
cloudswhere stars are formed.
There are stars forming throughout the Universe. Enormous glowing pillars of dusty
hydrogen gas stand sentinel over their cradles, basking in the light of nearby, newly-
formed stars.
Hubble’s ability to observe infrared light enables it to penetrate the dust and gas and
reveal the newly born stars as never before.
One of themost exciting of Hubble’smany discoveries was the observation of dust disks
surrounding some newborn stars, buried deep inside the Orion Nebula. Here we are
actually seeing the creation of new solar systems where planets will eventually form;
just as they did in our own Solar Systemfour and a half billion years ago.
In the first stages of their lives, stars can stock up on gas from their original birth cloud.
Material falling into the star creates bubbles or even jets as it is heated and blasted
along a path that follows the star's rotation axis, like an axle through awheel.
Oftenmany stars are born fromthe same cloud of gas and dust. Somemay stay together
through their whole lifetime, keeping step as they evolve, like the childhood friends that
you keep for life.
45
Important clues about our genesis
lie hidden behind the veil of gently
glowing, dust-laden molecular clouds
Mark McCaughrean (Max-Planck-Institute for Astronomy), C. Robert O'Dell (Rice University), and NASAESAThe Carina Nebula
Previously unseen details of a mysterious,complex structure within the Carina Nebula
(NGC 3372) are revealed by this image of the
'Keyhole Nebula', obtained using four
different pointings of theWFPC2 camera
through six colour filters. The picture is
dominated by a large, approximately circular
feature, which is part of the Keyhole Nebula,named in the 19th century by Sir John
Herschel. This region, about 8000 light-years
from Earth, is located adjacent to the
famous explosive variable star Eta Carinae,which lies just outside the field of view
toward the upper right. The Carina Nebula
also contains several other stars that are
among the hottest and most massive
known, each about 10 times as hot, and 100
times as massive, as our Sun.
NASAESA, The Hubble Heritage Team (AURASTScI)48
The stars in a cluster will all have the same age, but will have a range of different
masses. And thismeans that very different destinies await them.
Human existence is the mere blink of an eye compared with the life of a star, so the
direct observation of a transition between the different stages of a star’s life can only
come about by lucky chance. Hubble uses its stability and exceptionally sharp focus to
Young star's jet
This view of a 5 trillion kilometre
long jet called HH-47 reveals a
very complicated jet pattern
which indicates the star (hidden
inside a dust cloud near the left
edge of the image) might be
wobbling, possibly caused by the
gravitational pull of a companion
star.
Human existence is the mere blink of an eye
compared with the life of a star
J. MorseSTScI, and NASAESA49
reveal changes on cosmic scales over periods of only a few years. From the ground it is
usually not possible to see this kind of evolution taking place over such short periods. In
the Universe, this sort of action normally takes place on timescales of many thousands
or even millions of years, so being able to follow real time changes in astronomical
objects is a considerable asset.
At the other extreme of the stellar life cycle, Hubble has monitored Supernova 1987A
since 1991, four years after it exploded. The result is a series of stunning observations
that show the evolution following the violent explosion witnessed nearly two decades
ago.
The regular monitoring of an even older supernova remnant, the Crab Nebula, has
enabled Hubble to capture the display ofmatter and antimatter particles propelled close
to lightspeed by the Crab pulsar, a rapidly rotating neutron star. Thanks to Hubble,scientists can directly follow the motion of the gas remnant left behind by the super-
nova explosionwitnessed by Chinese astronomers in 1054.
Not all elderly stars end their lives as supernovae and Hubble has followed the final
stages of their lives, with their very different outcomes. One such elderly star V838
Monocerotis, located about 20,000 light-years from Earth put out a brief flash of energy
that illuminated the surrounding dust. The progress of the light echo across the dust
was captured by Hubble in a film-like sequence of unprecedented clarity.
The stars containing the most mass end their lives cataclysmically, destroying them-
selves in titanic stellar explosions known as supernovae. For a few gloriousmonths, each
becomes one of the brightest objects in the entire Universe, outshining all the other
stars in its parent galaxy.
Since its launch in 1990, Hubble has watched the drama unfold in Supernova 1987A, the
nearest exploding star inmodern times. The telescope has beenmonitoring a ring of gas
surrounding the supernova blast.
Hubble has observed the appearance of bright spots along the ring, like gemstones on a
necklace. These cosmic ‘pearls’ are now being lit by supersonic shocks unleashed during
the explosion of the star.
The ruins of an exploding star can hide a powerful engine. Hubble has probed the
mysterious heart of the Crab Nebula, the tattered remains of an exploding star, vividly
described by Chinese astronomers in 1054, and has revealed its dynamic centre. The
innermost region of this nebula harbours a special type of star, a pulsar. This star rotates
like a beacon, emitting light and energy in a beam. And it energizes and illuminates the
vast nebula of dust and gas surrounding it.The Crab Nebula
Much of the light emitted by an
object like the Crab Nebula comes
from what astronomers call a ‘non-
thermal’ process. Electrons,travelling at speeds close to that of
light, spiral around lines of
magnetic field and so produce
radiation covering the entire
electromagnetic spectrum, fromX-
rays to radio waves. This is why the
pictures of the Crab taken in X-rays
and optical light look so similar.
This is a composite image of the
Crab Nebula showing the X-rays
(blue), and optical (red) radiation.
Light echo movie
In fifteen highly productive years, Hubble has allowed us to
observe some stars ageing in real time. The telescope has
produced startling ‘movies’ that allow us to witness how
some of them do modify their appearance over this minute
span of astronomical time.
50
NASAESAASUJ. Hester et al.V838 Monocerotis
Some of the most impressive
celestial ‘movies’ are created by
pulses of light travelling out from a
stellar explosion like a flash from a
camera. As the ‘sphere of light’
expands away from its origin, it can
illuminate surrounding material to
produce what we call ‘light-echoes’.
These produce the illusion of
material in rapid motion while, in
reality, it is the pulse of light that is
moving.
NASA, the Hubble Heritage Team (AURASTScI) and ESA
51Nordic Optical Telescope and Romano Corradi (Isaac Newton Group of Telescopes, Spain)
5253
Wide angle Cat's Eye
Wide angle view of the enormous
but extremely faint halo of gaseous
material surrounding the Cat's Eye
Nebula showing material ejected
during earlier active episodes in the
star's evolution. This probably
happened some 50,000 to 90,000
years ago.
However, not all stars end their lives so violently. Sun-like stars cool down once they run
out of hydrogen. The centre collapses in on itself and the heavier elements are burnt,causing the outer layers to expand and leak slowly into space. At this stage in a star’s life,it is called a red giant.
Our Sun will become a red giant in a few billion years. At that time, it will expand so
much that it will swallowMercury, Venus and our planet aswell.
But these stars are not finished quite yet. They can still evolve into something extraordi-
nary. Just before they breathe their last breath, stars like our Sun go out in a final blaze of
glory.
In its final stages of nuclear fusion, stellar winds blow from the star, causing the rem-
nants of the red giant to swell to an enormous size. At the heart of this expansion, the
exposed heart of the star, an intensely hot dwarf, floods the gaseous envelope with
powerful ultraviolet light,making it glowin awhole range of beautiful colours.
Hubble's close up view of the Cat's
Eye
Detailed view from Hubble
focussing on central regions of the
Cat's Eye Nebula seen on the
previous page. Although this
nebula was among the first
planetary nebula ever to be
discovered, it is one of the most
complex planetary nebulae ever
seen in space. A planetary nebula
forms when Sun-like stars gently
eject their outer gaseous layers to
form bright nebulae with amazing
twisted shapes.
The Sun will swallow Mercury, Venus
and our planet as well
ESA, NASA, HEIC and The Hubble Heritage Team (STScIAURA)54
Colours of Planetary Nebulae
The intensely hot stars at the centres of planetary nebulae flood the surrounding volume of gas with
ultraviolet light. This causes the atoms in the gas to lose one or more of their electrons. The resulting ‘ions’
radiate their energy away in a series of discrete colours that astronomers can observe to measure gaseous
temperatures, densities, chemical composition andmotions.
Since these amazing constructions looked a bit like the newly discovered planet Uranus
to early telescopic astronomers, they became known as planetary nebulae. From
telescopes on Earth they look like round (planet-shaped) objects with fairly simple
geometries. Hubble's keen perception shows that each planetary nebula is a distinct
individual. Howa normal Sun-like star evolves froma relatively featureless gas sphere to
a nebula with intricate glowing patterns is still one of the unsolved mysteries in
astronomy. Each additional image of the glowing patterns of gas intrigues astronomers
anew.
From its unique position high above the distorting atmosphere Hubble is the only
telescope that can observe the swollen outer envelope of these dying stars in full detail.
Hubble has been able to observe the expansion of the nebula itself directly. The Cat’s
Eye Nebula, for instance, has been observed with Hubble over a period of eight years
and is amarvellous example of the resolving power of the telescope.
A Collection of Planetary Nebulae
Hubble’s dazzling collection of
planetary nebulae show surpris-
ingly intricate, glowing patterns:
sprinkling jets, pinwheels, ghostly
filaments, supersonic shocks,concentric rings and intricate
tendrils of gas and fiery lobes.With
their gauzy symmetrical wings of
gas they resemble butterflies.
ESAIC 4406, the Retina nebula
Hubble reveals a rainbow of colours
in this dying star, called IC 4406.
Like many other so-called planetary
nebulae, IC 4406 exhibits a high
degree of symmetry. The nebula's
left and right halves are nearly
mirror images of one another. If we
could fly around IC 4406 in a
spaceship, we would see that the
gas and dust form a vast doughnut
of material streaming outward
from the dying star.
One of the greatest mysteries in modern
astrophysics is how a simple, spherical gas
ball can give rise to these intricate structures!
One of the greatest mysteries in modern astrophysics is how a simple, spherical gas ball
such as our Sun can give rise to these intricate structures!
For some planetary nebulae it is as if a cosmic garden sprinkler created the jets that
stream out in opposite directions; or could these amazing patterns possibly be sculpted
by themagnetic field of a companion star that funnels the emitted gas into a jet?
Whatever their cause, in only ten thousand years these fleeting cosmic flowers disperse
in space. Just as real flowers fertilize their surroundings as they decompose, the chemi-
cal elements produced inside the star during its life ......
您现在查看是摘要介绍页, 详见PDF附件(31160KB,127页)。
